LXNAV S3 Variometer
General Description

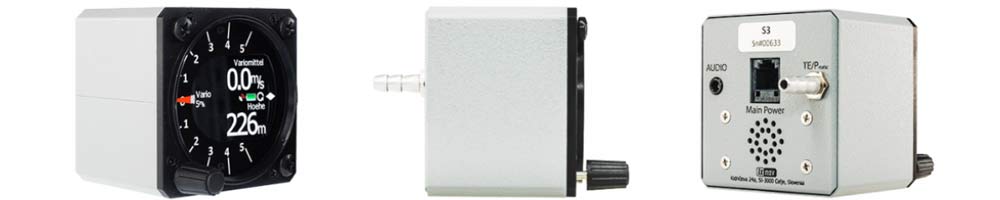

LXNAV S3 Variometer is a standalone digital vario meter with speed-to-fly function. The unit has standard dimensions to fit into a glider panel– 57 mm diameter (2¼″). The unit has integrated high-precision digital pressure sensors, which are sampled more than 100 times per second. Data is indicated with needle driven with stepper motor and displayed on a 320X240 pixel, 2" bright color display. To adjust values and settings, LXNAV S3 has one rotary knob combined with a push button.
Features
- Extremely bright 2" (5 cm) color display readable in all sunlight conditions with the ability to adjust the backlight.
- One rotary switch (knob) with push button function is used for input.
- Pre-loaded polar database for almost all gliders.
- Mechanical needle driven by stepper motor indicating vertical speed.
- 240x320 pixels color screen for additional information such as average, speed to fly, altitude…
- Many custom audio settings
- 100Hz sampling rate for very fast response.
- Internal speaker
LXNAV Cable Guide
Select the Right Cables by Referring to Our:
Use above selection for LXNAV S3 Variometer.
| Size and Weight | Width: 61 mm | Weight: ~156 g |
| Height: 61 mm | Hole: Standard 57mm | |
| Depth: 50 mm | ||
| Navigation | Modes | Final Glide |
| Info | Final glide indication | |
| MC setting | ||
| Ballast setting | ||
| Bugs setting | ||
| Polar selection (Pre-loaded database for almost all gliders) | ||
| Multipurpose Scale | AdditionalAdditional | |
| Instantaneous Vario (outer red pointer) | Integrated Logbook | |
| Average Vario (red diamond) | LXNAV S3D – rear seat repeater (Simple installation with only one plug, with ability to adjust vario volume also from rear seat) | |
| MacCready Setting (Blue arrowhead) | LXNAV Nano | |
| Thermal Average (Green “T”) | Oudie | |
| Making it easy to compare the achieved average and thermal climb rates with the MacCready setting |
Nano | |
| Navboxes | ||
| 3 configurable (navboxes) values | ||
| Showing such as average, thermal vario, netto, time, speed… | ||
| Speed to fly indication supported | ||
| Speaker | Integrated speaker with adjustable volume | |
| Smooth audio output | ||
| Many custom audio settings |
||
| Chip | ARM Processor |
|
| Display | 2-inch sunlight readable | |
| 16 bit color display | ||
| 1200 cd brightness | ||
| 320-pixel-by-240-pixel resolution | ||
| Mechanical needle driven by stepper motor |
||
| Sensors | High resolution variometer | |
| Digital temperature compensated pressure sensors for altitude and airspeed | ||
| 100Hz sampling rate for very fast response |
||
| Connections | Serial RS232 input/output (for firmware updates and rear seat repeater) |
|
| Buttons | 1 x Rotary buttons with push function |
|
| Consumption | LXNAV S3 at 12V (power input 10-16V) | |
| 95 mA – minimum brightness without audio | ||
| 135 mA – maximum brightness without audio |
||
| Material | Aluminum housing |
- LXNAV S3 (in Metric or Imperial units as specified)
- Main power cable for S3
- Manual (on USB stick)
