LXNAV Nano IGC Flight Recorder

Manufacturer Part Number: Nano

LXNAV Nano

General Description

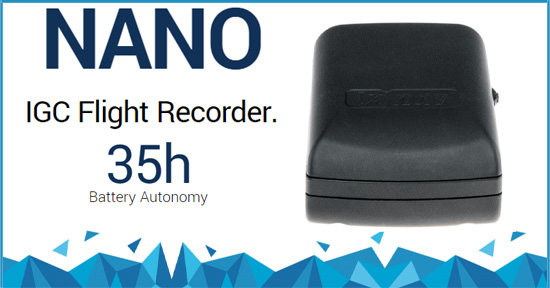

LXNAV NANO is the smallest IGC flight recorder ever built. Fly without any cables and chargers! A battery serves up to 36h with advanced power management. The Nano has a rocker button for easy handling.

The NANO flight recorder is the smallest flight recorder designed in accordance with “All Flights” IGC specification. It has IGC approval for all flights including world records. It features an integrated 66-channel GPS receiver with built-in antenna, altitude sensor, ENL sensor, security micro-switch, Bluetooth module and a 1700mAh battery. The internal battery allows up to 35 hours of stand-alone operation. The battery is charged when the flight recorder is connected to a computer, NanoPower or a wall charger.

Bluetooth is used for easy data exchange with a PDA

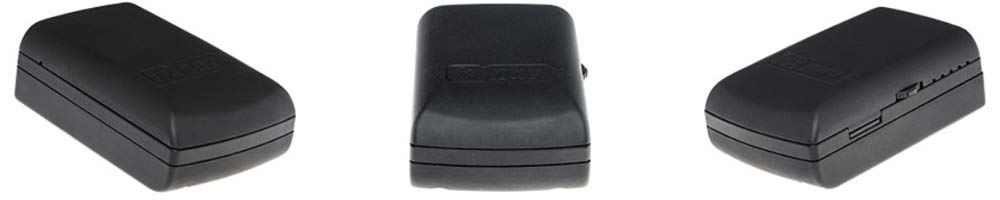

The housing is made of robust ABS plastic. On the left side, there is a micro-SD card slot, a rocker button and five status LEDs. The LEDs display the operational status. A 2 GB SD card is used for flight data storage. Flights are stored directly in IGC format and are downloadable through a USB connection which is compatible with all operating systems (MS Windows, Linux and Mac OS).

On the right side, there is a small hole leading to a reset button. Use a pin to press the reset button. In normal operation, this button should never be used.

At the back, there is a mini USB connector, which is used for charging and data transfer. The SD card is preloaded with the NanoConfig program, which is used for uploading flight declarations and changing the settings of the NANO. Flight declarations can be also uploaded using a serial interface cable or Bluetooth (see Chapter 5.1 for more details).

W&W typically stocks LXNAV Nano.

Features

  • High–level IGC specification
  • 2048bit Digital signature
  • 66 channel GPS receiver
  • Integrated GPS antenna
  • Plug and play USB interface (mass storage device)
  • Compatible with all operating systems (MS Win, Linux, Mac OS)
  • Unlimited storage for flights (28000 hours at 1 sec intervals).
  • Flights stored in IGC format are downloadable through USB, Bluetooth or Wi-Fi
  • Integrated LiIon battery and smart power management, gives you up to 35 hours of independent power supply
  • Easy battery charging via USB port on your notebook, PC or wall charger
  • Robust ABS plastic housing
  • Easy handling (Turn on and go)
  • Simple signaling LEDs for logger state, battery and GPS signal (5 LEDs)
  • Advanced engine noise level recording (also for JET engines)
  • Internal pressure sensor up to 16000m
  • Simple manipulation
  • Automatic power down after landing (can be set by the user)
  • Start logging at power on (for paragliders or pedestrians)
  • Toggle Bluetooth on and off pushing the rocker
  • Nanoconfig program for creating declaration and system settings (for PC and Android.CUP Files supported
  • ARM Cortex 7 CPU

LXNAV Cable Guide

Select the Right Cables by Referring to Our:

Size And Weight  Height: 66 mm Depth: 23 mm
  Width: 43 mm  Weight: ~66 g
Flight Recorder  Specification Recording
  High-level IGC specification Advanced engine noise level recording (also for JET engines)
  2048-bit digital signature  Automatic power down after landing (can be set by user)
    Start logging at power on (for paragliders or pedestrians)
  Durability Flight Storage
  Up to 35 hours with advanced power management  Unlimited storage for flights (+28000 hours at 1 sec interval)
    Flights stored in IGC file format are downloadable through USB, Bluetooth
  Software Support LED Indication
  Nanoconfig program for creating declaration and system settings (for PC and Android) Simple signalling LED’s for logger state, battery and GPS signal (5 LEDs)
  .CUP Files supported
Chip  ARM Cortex 7 CPU
Power And Battery Li-Ion battery
  1700 mAh
  Up to 35 hours of operation
  Battery charger via USB port
Sensors 66-channel GPS receiver
  Integrated GPS Antenna
  High resolution pressure altitude sensor measures up to 16000m (~52500ft)
  Advanced engine noise level sensor (also for JET engines)
Connections Plug & Play USB interface (mass storage device)
  USB compatible with all operating systems (MS Win, Linux, Mac OS)
  Serial RS232 interface with NMEA output
  Bluetooth module (Android and iOS)
  Integrated Bluetooth LE4 device (SPP)
Buttons Push and lever button
Storage 16 GBytes of solid state memory
  Integrated SD card reader
Material Robust ABS plastic housing
  • The NANO flight recorder with the preloaded NanoConfig program and a user manual.
  • A NanoPower cable
  • A USB cable
  • A Wall charger
  • A Barogram calibration chart
  • A Quick reference chart

NANOpwr - Nano Power (Nano power cable for Nano. Nano3/4

Nanobat - Li-ion Battery for Nano (Li-Ion battery for Nano and Nano3

NP-Oudie - Nano cable for Oudie (Nano power with Oudie mini USB Connection)

NANOPOWER-FL - Nano cable for Flarm (Nano power with FLARM RJ11 connector - supplied form flarm side.)

NANOPOWER-PF - Nano cable for Power Flarm (Nano power with Power Flarm RJ45 connector - supplied from flarm side.)

S7-GPS-NANO - S7 vario GPS cable for Nano

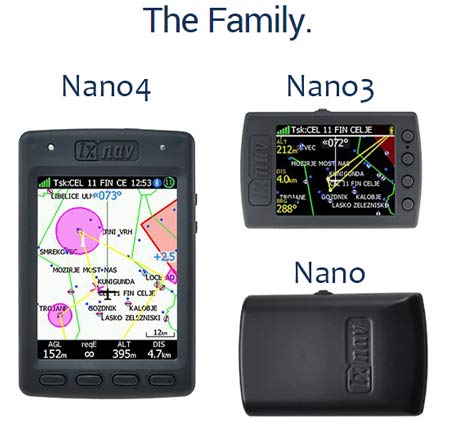

Compare and Decide

  Nano Nano3  Nano4

Screen No Screen 2.0″ Diagonal
1.6x1.2″ (41x30.5 mm)
Area: 1251 mm²
pixels: 320x240
3.5″ Diagonal
2.1x2.8″ (53x71mm)
Area: 3763 mm²
pixels: 480x640
Dimensions 60x40x20 mm
(2.36x1.57x0.79″)
65x42x22 mm
(2.6x1.7x0.9″)
65x105x17 mm
(2.6x4.1x0.7″)
Battery Life (Hours) 35 13 to 25 14 to 36
IGC Approved GPS Flight Recorder
Variometer using built-in pressure sensor
Moving map with airports, airspace &Final Glide to selected airport and around a task tasks
Final Glide to selected airport and around a task
Reachable Airports Highlighted on Map
Detailed map with terrain, cities, lakes, rivers, etc.

North Up Only

Elevation Database – can display AGL altitude
Receives and Displays FLARM traffic from connected FLARM
Receives and Displays ADS–B traffic from connected PowerFLARM
Receives and Displays PCAS transponder traffic from connected PowerFLARM
Edit settings in PowerFLARM
Thermal Assistant
