LXNAV Flap Encoder/Sensor
Related Products
LXNAV FLAP Sensor
General Description

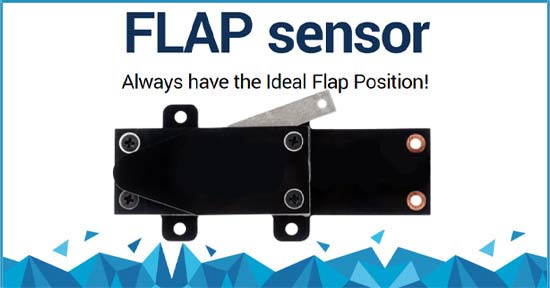

LXNAV FLAP Sensor/Encoder - is designed to measure the position or angle of the flaps. It is very useful to direct the pilot with the correct flap setting.
Flap Calculation Source
- Glider’s flap specification table
- Wing loading (ballast)
- Polar and g-force
| Base Length | 84 mm (3.31″) |
| Base Width | Not Including Mounting Feet: 23 mm (0.91″) |
| Base Width | Including Mounting Feet: 37 mm (1.46″) |
| Thickness | 9 mm (0.35″) |
| Radius of Rotating Arm | ~57 mm (2.24″) |
| Cable Length | 178″ (14.83′ (452.1 cm) (4.521 m) |
| Connect To | Flap Indicator, LX9070, LX9050, LX9000, S100, S10, S80, S8, LX8000, LX8080, LX8030, LX8040 |
- LXNAV FLap Sensor/Encoder
Features
- Extremely accurate
- Very small and light

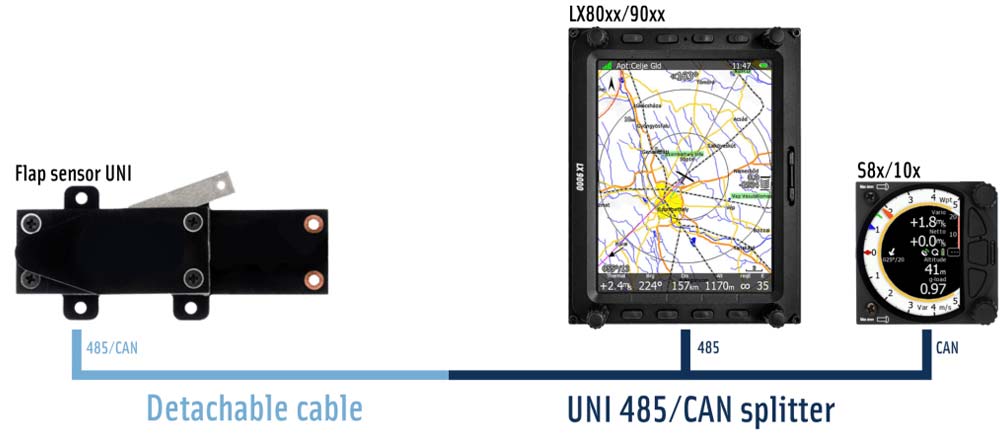

- RS-485 / CAN bus
- Plug and play to LX 80/90xx systems and S8x/10x variometers
- Installed already in most modern gliders
