TOST Master Cylinder PTC

SKU
6200, 6299
In stock
$405.00
-
+
Overview

TOST Master Cylinder PTC

050400, 050401

TOST Master Cylinder PTC

General Description

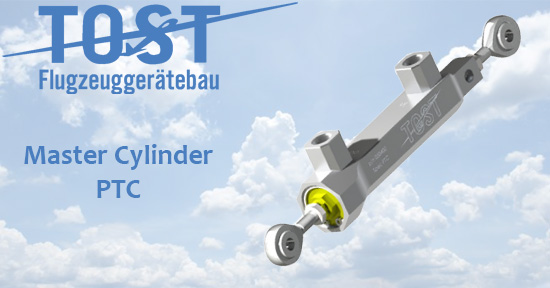

TOST Master Cylinder PTC "Pull-Type" - is a newly designed product and is special because of the actuation by pulling. The installation can be made e.g. in LS gliders for actuation of the brake via the pedals. The installation dimensions are very small. The sealing and the overall quality is high-grade.

Use above selections for TOST Master Cylinder PTC fluid type.

P/N

SKU

Desc Fluid

App

(Suitable

Brake

Assy.)

Max

Oper

Press

Bar

Conn

Thread

Weight

g

050400 PTC DOT4 BZT, BZT2, 30-9, 30-63A 100 M10X1 120
050401 PTC Mil-H BZT, BZT2, 30-9, 30-63A 100 M10X1 120

Master cylinder are the components in a hydraulic brake system, that produce the necessary brake respectively hydraulic pressure to push the brake linings against the brake disk. In addition to our brake assemblies, we manufacture a wide variety of master cylinders, available  from stock, which can be used in different combinations. In general, three types of master cylinder can be classified:

  • Hydraulic brake lever, which can be mounted directly to the control stick. The actuation is carried out directly by the pilot.e.g.: HBG, HBGD, HBGSH
  • Rudder pedal master cylinder, which can be mounted to additional small pedals on the rudder pedals or at a user-defined place in the fuselage. If the installation is not realized at the rudder pedals, the actuation has to be realized with a bow- den cable or push-rods. e.g.: PHBZ, 10-30
  • Universal master cylinder for user-defined installation in the fuselage. The actuation has to be realized with a bowden cable or push-rods. e.g.: Form 7

TOST Master Cylinder PTC is a special order items. Please allow approximately 4 weeks for delivery.

Always use TOST Tires and Tubes when available.

See "Tech Data" tab for Description, Application and Technical Data.

See "Docs" tab for "TOST Tire, Tube & Wheel Selection Guide".
