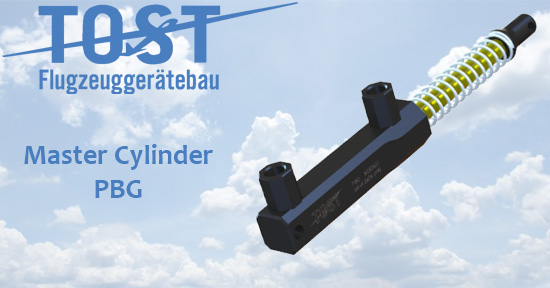

TOST Master Cylinder PBG
050610, 050611
TOST Master Cylinder PBG
General Description
TOST Master Cylinder PBG - is qualified especially together with the four-piston brake assembly BZT4 due to its big volume flow, or for the connection of two brake assemblies BZT or BZT2 to one master cylinder. The type PBG is applicable for mounting to the rudder pedals or also the free positioning in the fuselage. This master cylinder, too, is provided with an overflow function and can be used in row.
Use above selection for TOST Master Cylinder PBG fluid type.
|
P/N SKU |
Desc | Fluid |
App (Suitable Brake Assy.) |
Max Operating Press. Bar |
Conn Thread |
Mounting Device |
Weight g |
|
050610 6201 |
PBG | DOT4 | BZT, BZT2, 30-9, 30-63A | 100 | M10X1 | Bore | 135 |
|
050611 6202 |
PBG | Mil-H | BZT, BZT2, 30-9, 30-63A | 100 | M10X1 | Bore | 135 |
Master cylinder are the components in a hydraulic brake system, that produce the necessary brake respectively hydraulic pressure to push the brake linings against the brake disk. In addition to our brake assemblies, we manufacture a wide variety of master cylinders, available from stock, which can be used in different combinations. In general, three types of master cylinder can be classified:
- Hydraulic brake lever, which can be mounted directly to the control stick. The actuation is carried out directly by the pilot.e.g.: HBG, HBGD, HBGSH
- Rudder pedal master cylinder, which can be mounted to additional small pedals on the rudder pedals or at a user-defined place in the fuselage. If the installation is not realized at the rudder pedals, the actuation has to be realized with a bow- den cable or push-rods. e.g.: PHBZ, 10-30
- Universal master cylinder for user-defined installation in the fuselage. The actuation has to be realized with a bowden cable or push-rods. e.g.: Form 7
TOST Master Cylinder PBG is a special order items. Please allow approximately 4 weeks for delivery.
Always use TOST Tires and Tubes when available.
See "Tech Data" tab for Description, Application and Technical Data.
See "Docs" tab for "TOST Tire, Tube & Wheel Selection Guide".
