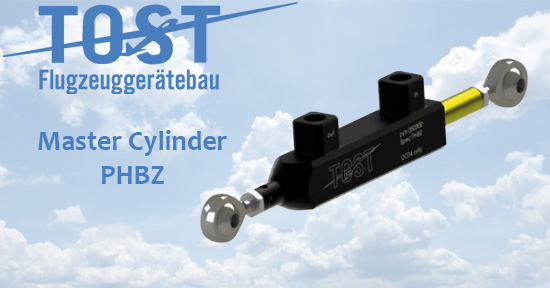

TOST Master Cylinder PHBZ

General Description

TOST Master Cylinder PHBZ - Fast response characteristics and a good modulation of braking force can also be realized with the master cylinder PHBZ. It is suitable for direct mounting at the rudder pedal and can either be fitted with forkhead or rod end. Apart from the installation at the rudder pedals an alternative installation in the fuselage is possible, because of the flexible mounting length. The master cylinder PHBZ is also equipped with the overflow function and can be used in row.

TOST Master Cylinder PHBZ price varies depending on selection. Use above dropdown box for selections and final price.

P/N

SKU

Desc

Hyd

Fluid

App

(Suitable

Brake

Assy)

Max

Oper

Press

Bar

Conn

Thread

Mount

Device

Weight

g

050300

6291

PHBZ DOT4 BZT, BZT2,
30-9, 30-63A
100 M10X1

Fork

Head

135

050301

6292

PHBZ Mil-H BZT, BZT2,
30-9, 30-63A
100 M10X1

Fork

Head

135

050310

6293

PHBZ DOT4 BZT, BZT2,
30-9, 30-63A
100 M10X1

Rod

End

149

030311

6294

PHBZ Mil-H BZT, BZT2,
30-9, 30-63A
100 M10X1

Rod

End

149

Master cylinder are the components in a hydraulic brake system, that produce the necessary brake respectively hydraulic pressure to push the brake linings against the brake disk. In addition to our brake assemblies, we manufacture a wide variety of master cylinders, available  from stock, which can be used in different combinations. In general, three types of master cylinder can be classified:

  • Hydraulic brake lever, which can be mounted directly to the control stick. The actuation is carried out directly by the pilot.e.g.: HBG, HBGD, HBGSH
  • Rudder pedal master cylinder, which can be mounted to additional small pedals on the rudder pedals or at a user-defined place in the fuselage. If the installation is not realized at the rudder pedals, the actuation has to be realized with a bow- den cable or push-rods. e.g.: PHBZ, 10-30
  • Universal master cylinder for user-defined installation in the fuselage. The actuation has to be realized with a bowden cable or push-rods. e.g.: Form 7

TOST Master Cylinder PHBZ is a special order items. Please allow approximately 4 weeks for delivery.

Always use TOST Tires and Tubes when available.

See "Tech Data" tab for Description, Application and Technical Data.

See "Docs" tab for "TOST Tire, Tube & Wheel Selection Guide".
