TOST Master Cylinder HBGSH

SKU
6289, 6290
In stock
$520.00
-
+
Overview

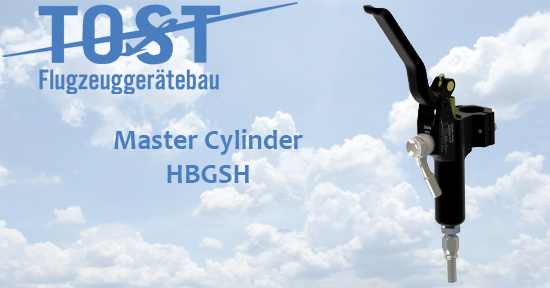

TOST Master Cylinder HBGSH

050220, 050221

TOST Master Cylinder HBGSH

General Description

TOST Master Cylinder HBGSH - has the same hydraulic design as the master cylinder HBGD. This ensures a fast response characteristic, a very good modulation of braking force and the overflow function. The installation is completed with four thread bores.

Use above selection for TOST Master Cylinder HBGSH fluid type.

P/N

SKU

Desc Fluid

App

(Suitable

Brake

Assy)

Max.

Operating

Press

Bar

Conn

Thread

Weight

g

050220

6289

HBGSH DOT4 BZT, BZT2,
30-9, 30-63A
100 M10X1 140

050221

6290

HBGSH Mil-H BZT, BZT2,
30-9, 30-63A
100 M10X1 140

We recommend the use of our thin and high flexible hydraulic lining Stahlflex (p/n 058002) for the feed and the pressure line, if the master cylinder is mounted to the control stick.

Master cylinder are the components in a hydraulic brake system, that produce the necessary brake respectively hydraulic pressure to push the brake linings against the brake disk. In addition to our brake assemblies, we manufacture a wide variety of master cylinders, available  from stock, which can be used in different combinations. In general, three types of master cylinder can be classified:

  • Hydraulic brake lever, which can be mounted directly to the control stick. The actuation is carried out directly by the pilot.e.g.: HBG, HBGD, HBGSH
  • Rudder pedal master cylinder, which can be mounted to additional small pedals on the rudder pedals or at a user-defined place in the fuselage. If the installation is not realized at the rudder pedals, the actuation has to be realized with a bow- den cable or push-rods. e.g.: PHBZ, 10-30
  • Universal master cylinder for user-defined installation in the fuselage. The actuation has to be realized with a bowden cable or push-rods. e.g.: Form 7

TOST Master Cylinder HBGSH is a special order items. Please allow approximately 4 weeks for delivery.

Always use TOST Tires and Tubes when available.

See "Tech Data" tab for Description, Application and Technical Data.

See "Docs" tab for "TOST Tire, Tube & Wheel Selection Guide".
