TOST Master Cylinder HBGD
050200, 050201
TOST Master Cylinder HBGD
General Description

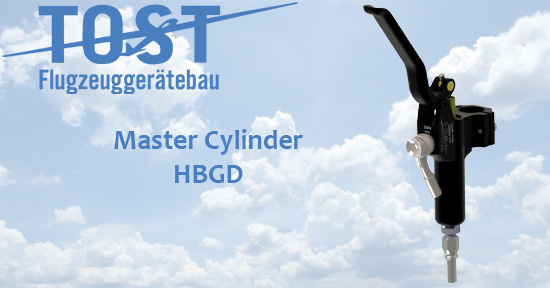

TOST Master Cylinder HBGD - is a compact master cylinder for direct mounting to the control stick. Due to high quality materials and optimized pressure sealings it ensures a fast response characteristic and a very good modulation of braking force.
The mounting to the control stick is completed with retaining clamps, including a quick fastener. Fitting retaining clamps are available for various control stick diameters (Ø 18 mm, Ø 19 mm, Ø 20 mm, Ø 24 mm). Further diameters are customized according to your requirements.
A valve-based control mechanism always ensures that the higher braking pressure will reach the brake assembly. Especially in double-seated planes, this will offer you a significant plus in safety.
Use above selection for TOST Master Cylinder HBGD fluid type.
|
P/N SKU |
Desc | Fluid |
App (Suitable Brake Assembly) |
Max. Operating Press. Bar |
Conn Thread |
Weight g |
|
050200 6287 |
HBGD | DOT4 | BZT, BZT2, 30-9, 30-63A |
100 | M10X1 | 150 |
|
050201 6288 |
HBGD | Mil-H | BZT, BZT2, 30-9, 30-63A |
100 | M10X1 | 150 |
We recommend the use of our thin and high flexible hydraulic lining Stahlflex (p/n 058002) for the feed and the pressure line, if the master cylinder is mounted to the control stick.
Master cylinder are the components in a hydraulic brake system, that produce the necessary brake respectively hydraulic pressure to push the brake linings against the brake disk. In addition to our brake assemblies, we manufacture a wide variety of master cylinders, available from stock, which can be used in different combinations. In general, three types of master cylinder can be classified:
- Hydraulic brake lever, which can be mounted directly to the control stick. The actuation is carried out directly by the pilot.e.g.: HBG, HBGD, HBGSH
- Rudder pedal master cylinder, which can be mounted to additional small pedals on the rudder pedals or at a user-defined place in the fuselage. If the installation is not realized at the rudder pedals, the actuation has to be realized with a bow- den cable or push-rods. e.g.: PHBZ, 10-30
- Universal master cylinder for user-defined installation in the fuselage. The actuation has to be realized with a bowden cable or push-rods. e.g.: Form 7
TOST Master Cylinder HBGD is a special order items. Please allow approximately 4 weeks for delivery.
Always use TOST Tires and Tubes when available.
See "Tech Data" tab for Description, Application and Technical Data.
See "Docs" tab for "TOST Tire, Tube & Wheel Selection Guide".
