Zig Zag & Dimple Turbulator Tape
Zig Zag and Dimple Turbulator Tape
General Description
Zig Zag and Dimple Turbulator Tape - Major performance increases are possible on several sailplane models (proven on some powered aircraft as well) by the addition of turbulators placed ahead of the separation bubble on the wing. Turbulators are found on most current production sailplanes as delivered by the manufacturers. Wings & Wheels offers multiple types of turbulator tape.
W&W typically stocks Zig Zag and Dimple Turbulator Tape.
Zig Zag and Dimple Tape price varies depending on selection. Use dropdown box above for selection and final price.
| Zig Zag Tape | Width | Between Teeth | Degree | Thickness | Length |
|
60° x 0.4 mm x 12 mm x 14 m SKU 4504 |
12mm | 6mm | 60 | 0.4mm | 14m |
|
60° x 0.5 mm x 12 mm x 14 m SKU 4507 |
12mm | 6mm | 60 | 0.5mm | 14m |
|
60° x 0.5mm x 9 mm x 16.5 m SKU 4501 |
9mm | 6mm | 60 | 0.5mm | 16.5m |
|
90° x 0.5mm x 11 mm x 15 m SKU 4510 |
11mm | 15mm | 90 | 0.5mm | 16.5m |
|
Dimple Tape |
10mm | N/A | N/A | 10m |
Sample Zig Zag and Dimple Tape is also available here.
| Zig Zag Tape | Dimple Turbulator Tape |
| 60° x 0.4 mm x 12 mm x 14 m | 0.8 mm x 10 mm X 10 m |
| 60° x 0.5 mm x 12 mm x 14 m | |
| 60° x 0.5mm x 9 mm x 16.5 m | |
| 90° x 0.5mm x 12 mm x 16.5 m |

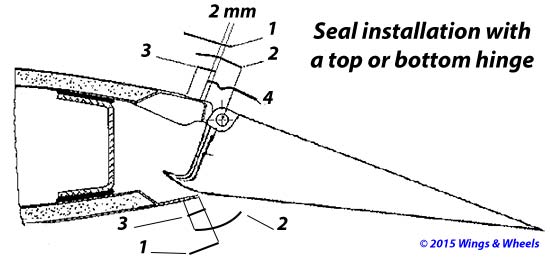

Aircraft Seal With a Top or Bottom Hinge
- PVC Anti–Peel “tesa® Safety Tape”
- Pre–Curved “Mylar Gap Seal”
- “tesa® Transfer Tape” (Double sided adhesive tape)
- Glass Cloth “Tef. Fabric Tape” with single side adhesive

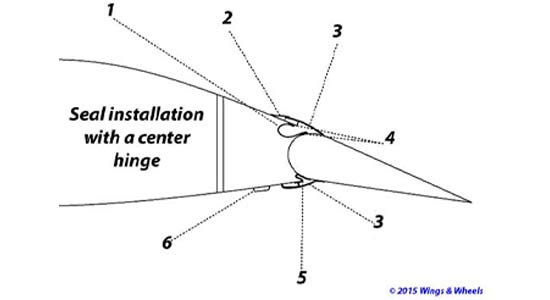

Aircraft Seal With a Center Hinged Control Surface
- Teflon Sealing Tape “Tef. Fabric Tape” Non–adhesive
- PVC Anti–Peel “tesa® PVC Safety Tape”
- Pre–Curved “Mylar Gap Seal”
- “tesa® Transfer Tape” (Double sided adhesive tape)
- Glass Cloth “Tef. Fabric Tape” with single side adhesive (optional)
- 3D “Turbulator Tape” (Zig Zag or Dimple Turbulator Tape)
