tesa Transfer Tape
Available in: 9mm, 12mm, 16mm and 25mm
Tesa Transfer Tape
General Description
Tesa Transfer Tape - Double-sided sticky transfer tape is used to adhere Mylar seals to your aircraft. Consult your aircraft maintenance manual for the recommended transfer tape width. Most aircraft manufacturers specify a transfer tape width of 1/3 to 1/2 of Mylar width.
Premium tesa Transfer Tape is a transparent double-sided tape consisting of a PP–film backing and a tackified adhesive. Premium Transfer Tape features an excellent combination of high tack and adhesion for Mylar installation. It has good temperature resistance and outdoor suitability. Premium Transfer Tape has a higher adhesion strength than Standard Transfer Tape. Mylar will adhere stronger with Premium Tesa Transfer Tape.
Standard tesa Transfer Tape is a transparent, double-sided, self–adhesive tape with PET film lining and a modified acrylic adhesive. Standard tesa Transfer Tape has a lower adhesion than its Premium counterpart.
W&W typicaly stocks all Tesa Transfer Tape.
Transfer Tape price varies depending on selection above.
Premium tesa® Transfer Tape Technical Data
| Backing Material | PP film | |
| Color | Transparent | |
| Adhesive | Tackified acrylic | |
| Liner Type | Glassine | |
| Liner Color | Brown | |
| Total Thickness | 8.7 mils | 0.22 mm |
| Adhesion | 118.8 oz/in | 83.9 N/cm |
| Tensile Strength | 28.6 lb/in | 50 N/cm |
| Elongation to Break | 150% |
Premium tesa® Transfer Tape is available in: 12mmX55m.
Standard tesa® Transfer Tape Technical Data
| Backing Material | PET | |
| Color | Transparent | |
| Adhesive | Tackified acrylic | |
| Liner Type | MOPP film | |
| Liner Color | Salmon | |
| Total Thickness | 8.1 mils | 0.20 mm |
| Adhesion | 127.91 oz/in |
Standard tesa® Transfer Tape is available in 9mm, 12mm,16mm and 25mm X 33m.

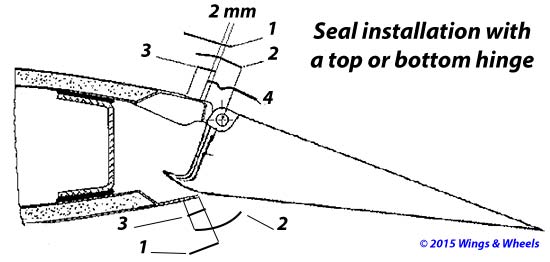

Aircraft Seal with Top or Bottom Hinge
- PVC Anti–Peel “tesa® Safety Tape”
- Pre–Curved “Mylar Gap Seal”
- “tesa® Transfer Tape” (Double sided adhesive tape)
- Glass Cloth ”Tef. Fabric Tape“ with single side adhesive

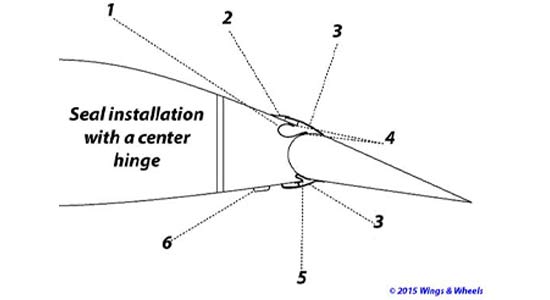

Aircraft Seal With Center Hinged Control Surface
The seal is internal and requires the control surface to be removed for seal installation.
- Teflon Sealing Tape “Tef. Fabric Tape” Non–adhesive
- PVC Anti-Peel “tesa® PVC Safety Tape”
- Pre–Curved "Mylar Gap Seal"
- “tesa® Transfer Tape” (double sided adhesive tape)
- Glass Cloth “Tef. Fabric Tape” with single side adhesive (optional)
- 3D “Turbulator Tape” (Zig Zag or Dimple Turbulator Tape)
