TOST Master Cylinder HBZS
TOST Master Cylinder HBZS
General Description

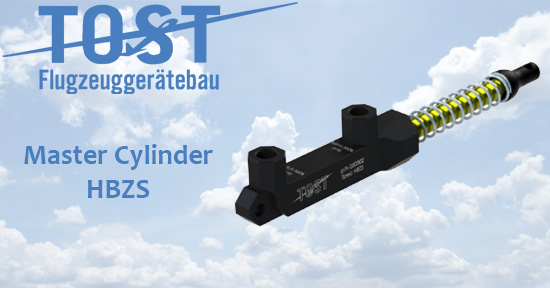

TOST Master Cylinder HBZS - Smaller and lighter than the master cylinder PHBZ. With the type HBZS, you can replace a single master cylinder 10-30. This will result in the advantage of a clear weight reduction, a flexible installation position, and more economical spare parts prices.
TOST Master Cylinder HBZS price varies
depending on selection above.
|
P/N SKU |
Desc | Fluid |
App (Suitable Brake Assy.) |
Max Oper Press. Bar |
Conn Thread |
Mtg Device |
Weight g |
|
050302 6295 |
HBZS | DOT4 | BZT, BZT2, 30-9, 30-63A | 100 | M10X1 | Bore | 99 |
|
050303 6296 |
HBZS | Mil-H | BZT, BZT2, 30-9, 30-63A | 100 | M10X1 | Bore | 99 |
|
050304 6297 |
HBZS | DOT4 | BZT, BZT2, 30-9, 30-63A | 100 | NPT | Bore | 99 |
|
050305 6298 |
HBZS | Mil-H | BZT, BZT2, 30-9, 30-63A | 100 | NPT | Bore | 99 |
TOST Wheel, Tire, and Tube Selection GuideMaster cylinder are the components in a hydraulic brake system, that produce the necessary brake respectively hydraulic pressure to push the brake linings against the brake disk. In addition to our brake assemblies, we manufacture a wide variety of master cylinders, available from stock, which can be used in different combinations. In general, three types of master cylinder can be classified:
- Hydraulic brake lever, which can be mounted directly to the control stick. The actuation is carried out directly by the pilot.e.g.: HBG, HBGD, HBGSH
- Rudder pedal master cylinder, which can be mounted to additional small pedals on the rudder pedals or at a user-defined place in the fuselage. If the installation is not realized at the rudder pedals, the actuation has to be realized with a bow- den cable or push-rods. e.g.: PHBZ, 10-30
- Universal master cylinder for user-defined installation in the fuselage. The actuation has to be realized with a bowden cable or push-rods. e.g.: Form 7
TOST Master Cylinder HBZS is a special order item. Please see "Shipping Options" above.
Always use TOST Tires and Tubes when available.
See "Tech Data" tab for Description, Application, and Technical Data.
Select the right Tire, Tube & Wheel for your sailplane by referencing our Tire, Tube & Wheel Selection Guide.
