LXNAV S8 / S80 Variometer
No Additional Tariff Fee
Related Products
Check items to add to the cart or
LXNAV S8 / S80 Variometer
A Stand-Alone Digital Variometer, Final Glide Calculator
and Navigation System With Moving Map
General Description
LXNAV S8 (57mm) / S80 (80mm) is a standalone digital variometer, final glide calculator, and navigation system with a simple moving map. The LXNAVS8/S80 has both GPS/FLARM and PDA/PNA input/output. The unit has standard dimensions that will fit into a glider panel with an opening of 80 mm diameter (3.15″) or 57 mm diameter. It is also able to supply a PDA/PNA with power (5VDC/1A). The unit has an integrated high-precision digital pressure sensor and inertial system. The sensors are sampled more than 100 times per second. Real Time Data is displayed via a vario needle, an airspace map, and up to 4 variable numeric fields displayed on a QVGA 320x240 pixel, 3.5″ (S80) or 2.5″ (S8), high brightness (1200 nits) color display. To adjust values and settings, the LXNAV S8/S80 has two rotary push-button knobs and three additional push buttons.
The LXNAVS8/S80 can be expanded with one or more repeaters (LXNAV S8/S80) via the CAN bus. This allows both pilots in a two-seat glider to have independent control of all functions of each unit in the front or the rear seat.
Features
- An extremely bright 3.5’’ (S80) or 2.5” (S8) QVGA color display readable in all sunlight conditions with the ability to adjust the backlight.
- Two rotary switches (knobs) with push button function and three push buttons are
used for input. - Pre-loaded polar database for nearly all gliders.
- GPS/FLARM and PDA/PNA input/output.
- FLARM Indication if a FLARM is connected to the GPS/FLARM port.
- Programmable “needles” for selectable data such as netto vertical speed, relative (super netto) and vertical speed (vario).
- 320x240 pixels colour screen for additional information such as average, thermal vario, time, speed etc…
- Many custom audio settings.
- 100Hz sampling rate for very fast response.
- Speed to fly indication.
- TE compensation can be selected to be either pneumatic TE probe or electronic TE.
- Audio equalizer, for custom vario sound performance.
- Audio thermal assistant.
LXNAV S8 / S80 price varies depending on selection.
Use above dropdown box for selections and final price.

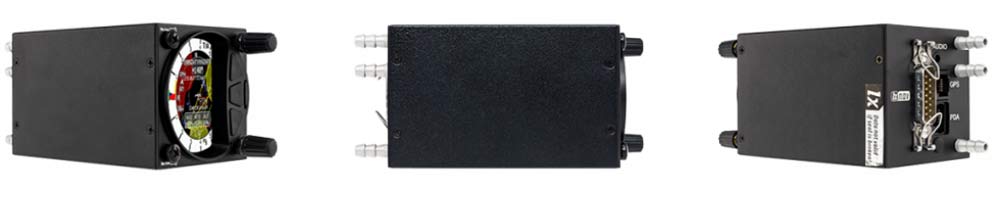

S8 Technical Data
| Size And Weight | Width: 61 mm | Depth: 95 mm |
| Height: 61 mm | Weight: ~330 g | |
| Navigation | Modes | Final Glide |
| Info | Final glide indication | |
| Flarm | MC setting | |
| Thermal Assistant | Ballast setting | |
| Waypoint | Bugs setting | |
| Task | Polar selection | |
| Setup | ||
| Flarm | Additional | |
| Indication | AHRS (AHRS activation with a CODE – no need of for any hardware upgrade) | |
| Objects on the map | Remote stick (CAN) | |
| Warnings | Compass module (not supported yet – under development) | |
| Sound warnings | MOP sensor (not supported yet – under development) | |
| FlarmNET support | S8D repeater unit | |
| Oudie | ||
| Nano/Nano3/Nano4 | ||
| FLAP sensor | ||
| Bluetooth Stick | ||
| Airspace | Navboxes | |
| Airspace Display | 4 configurable (navboxes) values | |
| CUB compatible or from LXNAV database | 3 configurable (navboxes) values on map screen | |
| Speaker | External speaker with adjustable volume | |
| Smooth audio output | ||
| Audio equalizer | ||
| Integrated synthesized speech output | ||
| Audible thermal assistant | ||
| Chip | ARM Cortex-M4 160MHz | |
| Display | 2.5-inch sunlight readable | |
| 16 bit color display | ||
| 1200 cd brightness | ||
| 320-pixel-by-240-pixel resolution | ||
| ALS – ambient light sensor | ||
| Sensors | High resolution variometer | |
| High resolution pressure altitude sensor measures up to 16000m (~52500ft) | ||
| Inertial platform 3 axis accelerometer (+-8g) and 3 axis gyroscope | ||
| Advanced engine noise level sensor (also for JET engines) | ||
| Digital temperature compensated pressure sensors for altitude and airspeed | ||
| Connections | 6 digital inputs | |
| GPS port input/output on RS232 level (standard IGC 6 pin connector RJ11) | ||
| PDA port input/output on RS232 or TTL level for PDA/PNA devices with 5V power supply (8 pin RJ 45, 5V output max 2A) | ||
| Audio output | ||
| 1Mbit CAN bus for connection for SxxD repeater, Compass module , MOP sensor or Remote stick | ||
| Speed command and Vario priority input and 4 additional user defined inputs | ||
| Buttons | 2 x Rotary buttons with push function | |
| 3 x Push buttons | ||
| Storage | 16 GBytes of internal memory | |
| Integrated SD card reader | ||
| Consumption | LXNAV S8 at 12V (power input 10-16V) | LXNAV S8D at 12V (power input 10-16V) |
| 120 mA – minimum brightness without audio | 90 mA – maximum brightness without audio | |
| 180 mA – maximum brightness without audio |
||
| Material |
Aluminum housing |

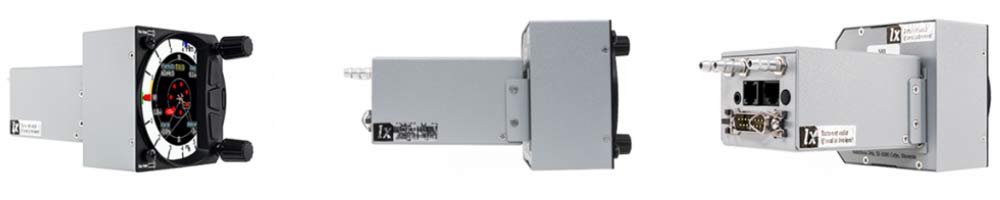

S80 Technical Data
| Size And Weight | Sensor Box | All Together |
| Width: 65 mm | Width: 81 mm | |
| Height: 45 mm | Height: 81 mm | |
| Depth: 85 mm | Depth: 132 mm | |
| Weight: ~460 g | ||
| Navigation | Modes | Final Glide |
| Info | Final glide indication | |
| Flarm | MC setting | |
| Thermal Assistant | Ballast setting | |
| Waypoint | Bugs setting | |
| Task | Polar selection | |
| Setup | ||
| Flarm | Additional | |
| Radar | AHRS (AHRS activation with a CODE – no need of for any hardware upgrade) | |
| Indication | Remote stick (CAN) | |
| Objects on the map | Compass module (not supported yet – under development) | |
| Warnings | MOP sensor (not supported yet – under development) | |
| Sound warnings | S80D repeater unit | |
| FlarmNET support | Oudie | |
| Nano/Nano3/Nano4 | ||
| FLAP sensor | ||
| Bluetooth Stick | ||
| Airspace | Navboxes | |
| Airspace Display | 4 configurable (navboxes) values | |
| CUB compatible or from LXNAV database | 3 configurable (navboxes) values on map screen | |
| Speaker | External speaker with adjustable volume | |
| Smooth audio output | ||
| Audio equalizer | ||
| Integrated synthesized speech output | ||
| Audible thermal assistant | ||
| Chip | ARM Cortex-M4 160MHz | |
| Display | 3.5-inch sunlight readable | |
| 16 bit color display | ||
| 1200 cd brightness | ||
| 320-pixel-by-240-pixel resolution | ||
| ALS – ambient light sensor | ||
| Sensors | High resolution variometer | |
| High resolution pressure altitude sensor measures up to 16000m (~52500ft) | ||
| Inertial platform 3 axis accelerometer (+-8g) and 3 axis gyroscope | ||
| Advanced engine noise level sensor (also for JET engines) | ||
| Digital temperature compensated pressure sensors for altitude and airspeed | ||
| Connections | 6 digital inputs | |
| GPS port input/output on RS232 level (standard IGC 6 pin connector RJ11) | ||
| PDA port input/output on RS232 or TTL level for PDA/PNA devices with 5V power supply (8 pin RJ 45, 5V output max 2A) | ||
| Audio output | ||
| 1Mbit CAN bus for connection for SxxD repeater, Compass module , MOP sensor or Remote stick | ||
| Speed command and Vario priority input and 4 additional user defined inputs | ||
| Buttons | 16 GBytes of internal memory | |
| Integrated SD card reader | ||
| Consumption | LXNAV S80 at 12V (power input 10-16V) | LXNAV S80D at 12V (power input 10-16V) |
| 140 mA – minimum brightness without audio | 90 mA – minimum brightness without audio | |
| 190 mA – maximum brightness without audio | 140 mA – maximum brightness without audio | |
| Material | Aluminum housing |
- LXNAV S8 or S80 main unit
- Main power cable for S8/S80 + CAN terminator
- Speaker
- GPS cable (S7-GPS-IGC included, other types optional, this cable is included only with the S8x device)
- PDA cable (optional)
- 2x6 mm screw
Configurations
| S8 Club | S8 | S80 Club | S80 | |
| Dimension | 57mm | 57mm | 80mm | 80mm |
| TSK Mode | Optional |  |
Optional | |
| Airspace | Optional | |
Optional | |
| Digital Inputs | SC & VP included (4 optional) | 6 | SC & VP included (4 optional) | 6 |
| Pilot Profiles | Optional | |
Optional | |
