LXNAV Vario Indicators
LXNAV I8 / I80 Indicator
General Description
LXNAV Indicator - The vario indicator is always part of the vario unit. However, an unlimited number of secondary vario indicators can be connected to the system using the RS485 system bus. There are three different types of vario indicators: the I9 vario indicator, which is standard part of V5/V9 Variometer, the I8 vario indicator or I80 vario indicator, which is built-in part of V8/V80 Variometer and the old LCD or USB-D vario indicator. The LCD vario indicator and USB-D type of indicator are setup through menu LCD Indicator, whereas other, more modern vario indicators have their own menu item identified by the serial number.
LXNAV Indicators are a special order item. Please allow approximately 3 weeks LXNAV production time.
LXNAV I9 Indicator
The I9 indicator has a mechanical needle and a color screen with 320x240 pixels resolution on which user selectable data are displayed. Each I9 indicator is identified by a serial number, which is also displayed on the hardware menu. Therefore, literally unlimited number of vario indicators can be connected to RS485 bus and each of them can be setup separately.
LXNAV I8 / I80 Indicator
The Indicator I8/I80 is without a mechanical needle. The I80 features a 3.5” color screen with 320x240 pixels resolution; the I8 features a 2.5” color screen with 320x240 pixels resolution. User selectable data are displayed on the screen and the needle is drawn. Each indicator is identified by a serial number, which is also displayed on the hardware menu. Therefore, literally an unlimited number of indicators can be connected to the RS485 bus and each of them can be setup separately, however only one vario unit.
LXNAV Indicator price varies depending on selection.
Use above selection for final price.
I9 and I8 Vario Indicators
- Requires 43 mm space behind the panel
- The cable connection needs additional 45 mm space
- Some space should be taken in account also for the pitot-static tubes connection
- Choose a position so that the display will be viewable.
I80 Vario Indicators
- Requires 45 mm space behind the panel
- The cable connection needs additional 45 mm space
- Some space should be taken in account also for the pitot-static tubes connection
- Choose a position so that the display will be viewable.
I8 Dimensions

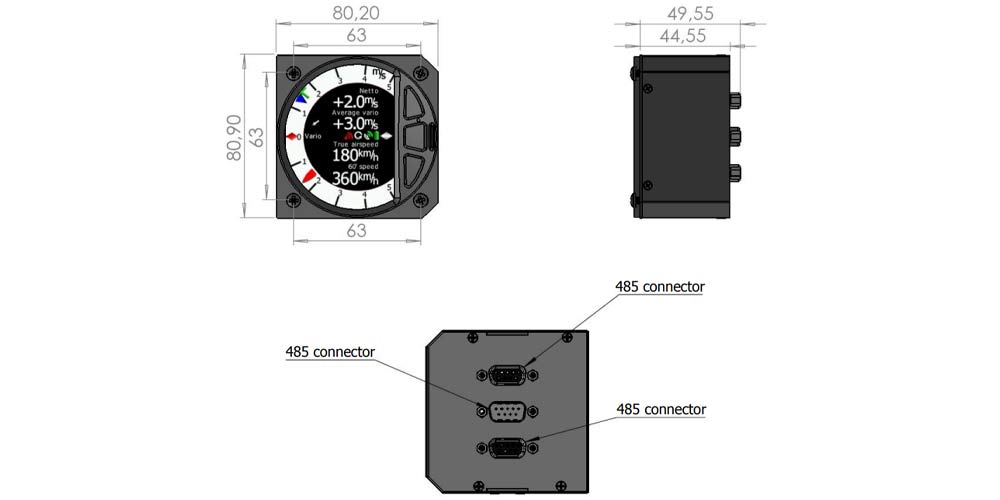

I80 Dimensions
LXNAV Cable Guide
Select the Right Cables by Referring to Our:
