Trig TA12 Transponder Antenna
Manufacturer Part Number: 02450-00
Related Products
Check items to add to the cart or
Trig TA12 Transponder Antenna
Trig TA12 Transponder Antenna

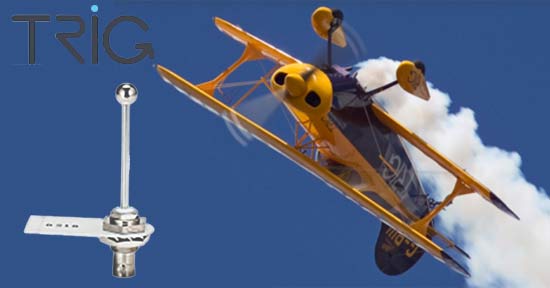

Trig TA12 Transponder Antenna - is a fully certified and highly compact ‘rod and ball’ style transponder antenna. The TA12 is an ideal match for a Trig transponder, particularly in applications where a small and discreet transponder antenna is needed in light aviation, GA and high performance types.
The TA12 is simple to install, requiring a small hole in the aircraft surface. An installation guide, install kit and FAA 8130 certification/approval is included. Make your Trig transponder installation complete by adding a TA12.
| Model | Type | Frequency | Impedance | VSWR |
| TA12 | Transponder Antenna – ‘rod and ball’ type | 1030 – 1090 MHz | 50 Ohms nominal | 1.3:1 maximum |
| Polarization | Pattern | Connector | RF power | Weight |
| Vertical | Omni-Directional | BNC female | 1.0kW peak @ 1% duty cycle | 28g / 1oz |
The TA12 ships with an installation kit, installation guide and an FAA 8130 certification / approval
Features
- High quality product – proven with Trig transponders
- Suitable for most GA types, including high performance aircraft (up to 350 mph / 50,000 feet)
- Certified to FAA TSO C74c
- Discreet and very lightweight
W&W typically stocks Trig TA12.
