LXNAV PowerMouse+ FCC Approved
General Description
LXNAV PowerMouse+FCC Approved - is a stand-alone box hidden behind/below the cockpit dashboard. It has an integrated Wi-Fi, USB port, Bluetooth module, which works with Android and iOS, and a GPS module. It comes with IGC flight recorder and an ENL sensor, a second FLARM antenna – RFB, and an ADS-B (mode S) module. The PowerMouse+ is based on PowerFLARM technology.
IGC. ENL. Second FLARM Antenna included PowerMouse+ comes with IGC flight recorder and with an ENL sensor (engine detection). An additional second FLARM antenna is included.
ADS-B - Integrated ADS-B (mode S) receiver.
PowerMouse+ FCC Certified for the US market - PowerMouse+ functions similarly but with reversed polarity for Flarm antenna connectors. LXNAV Flarm Antennas are recommended for best results.
Wi-Fi integrated - Easy to configure. Connect & share the data with SkyDemon or any other similar device.
PowerMouse+LITE FCC - PowerMouse+, built-in Wi-Fi, Bluetooth module, GPS antenna, Wi-Fi antenna, 1x T dipole antenna included. (Options include IGC and ENL.)
PowerMouse+ FCC - PowerMouse+ with RFB (second receiver), built-in Wi-Fi, Bluetooth module, IGC, ENL, GPS antenna, Bluetooth antenna, 2x T dipole antenna included. ADS-B receiver, 1x T dipole antenna. (Optional RFB License.)
PowerMouse+ GA FCC - for General Aviation with RFB (second receiver), bilt-i Bluetooth module, GPS antenna, Bluetooth antenna, 2x Dipole antenna included, ADS-B receiver, 1x T dipole antenna. (Optional RFB License.)
| Software | Input and output |
| IGC flight recorder |
Input voltage 8-36 VDC |
| Engine noise level – ENL | Consumption 0.8 W |
| Second FLARM antenna | |
| ADS-B (mode S) receiver | |
| Wi-Fi connectivity (TCPIP connection) | |
| Garmin TIS-A interface (optionally – must be specified when ordering) | |
| Bluetooth compatible to iOS and Android | |
| Configurable audio output | |
| Expandable to all standard FLARM displays (3V and 12V) | |
| Hardware | Size and weight |
| 2 RJ45 FLARM connector |
84mm x 55mm x 25mm |
| USB port | Weight only 160 grams |
| 3 FLARM antenna | |
| Bluetooth BT3.0 and BT4.0 LE (Not in the F.C.C. version) | |
| Integrated Wi-Fi | |
| GPS module | |
| Internal pressure | |
| ADS-B module | |
| Configurable push button |
- T-dipole FlarmAntenna
- Wi-Fi Antenna – FCC version has integrated Wi-Fi antenna
- GPS antenna
- 2nd Dipole FlarmAntenna is optional
- ADSB Antenna is optional
- USB stick
- Flarm power supply cable
- IO cable (Button and Audio output)

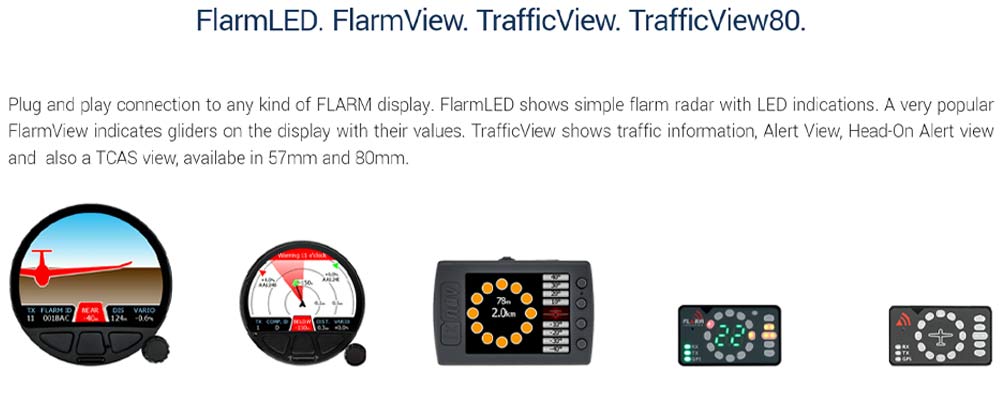

- FlarmView/FlarmLED (Optional)
| PowerMouse+ LITE | PowerMouse+ | PowerMouse+ GA | |
| RFB |  |
|
|
| ADSB | |
|
|
| USB | |
|
|
| Bluetooth | |
|
|
| WiFi | |
|
|
| TCPIP connection (Skydemon,...) | |
|
|
| Configurable Audio output | |
|
|
| External Configurable Push Button | |
|
|
| IGC option | Optional | |
|
| ENL option | Optional | |

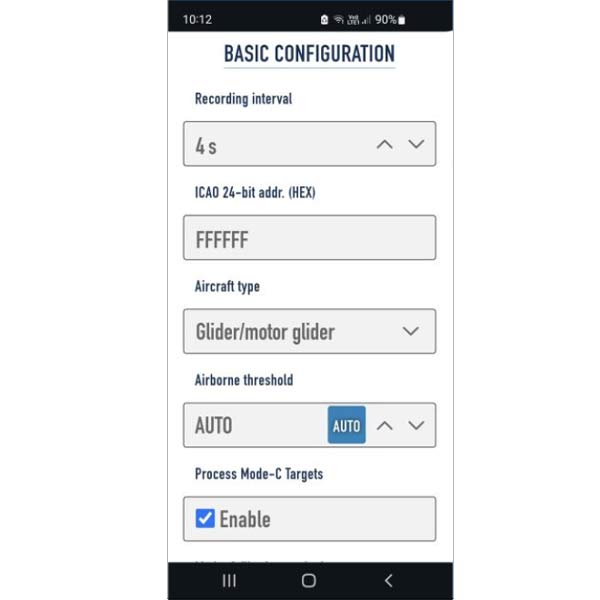

Wi-Fi application - With this application, it is very easy to configure all the settings, upload of files (databases, obstacles), configure Audio output, configure external push button, send declaration, download logbook, analyze your range, define sounds and even use it as a traffic monitor.
USB Module. GPS Module. Bluetooth - USB module, 56 channels GPS module built-in and Bluetooth compatible to iOS and Android.
Audio Output. External Push Button - Audio output for external connectivity and push button (Pilot event, volume settings…).
Built-in Splitter (2 communication ports) - Flarm splitter – easy to connect to second display or nav device. These are 2 independently configured ports.
LXNAV PowerMouse+ FCC is a special order item. Please allow approximately 5 weeks LXNAV production time.
Wi-Fi Application
Analyze Range

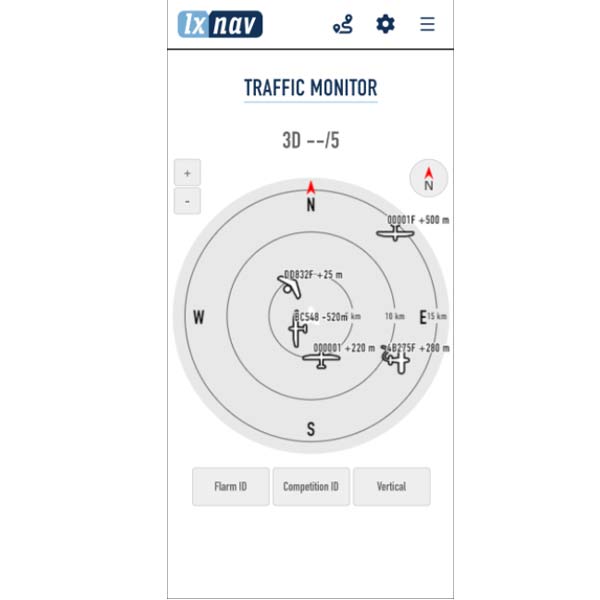

Traffic Monitor
Logbook
