Trig TA14 Transponder Antenn
Manufacturer Part Number: 02449-00
Typically Stocked Item

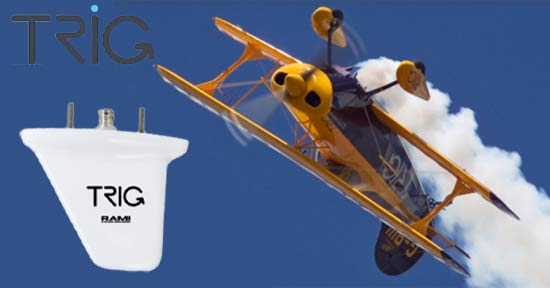

Trig TA14 Transponder Antenna
General Description
Trig TA14 Transponder Antenna - is a certified transponder blade antenna, designed to partner with any Trig transponder. The TA14 provides optimum performance for our transponders and is suitable for both conventional GA and high-performance aircraft types, up to 350mph and 50,000 feet. The TA14 antenna is a streamlined design and features longer mounting screws – this offers greater installation flexibility for both metal-skinned and composite aircraft. Make your Trig transponder installation complete by adding a TA14.
W&W typically stocks Trig TA14 Transponder Antennas.
| Moel | Type | Frequency | Impedance | VSWR |
| TA14 | Transponder Antenna – Blade | 960 – 1220 MHz | 50 Ohms nominal | 1.5:1 maximum |
| Polarization | Pattern | Connector | RF power |
Height/ Weight |
| Vertical | Omni-Directional | BNC female | 2.5kW peak | 86mm / 90g 3.4″ / 0.2 lbs |
The TA14 ships with an installation kit, installation guide and an FAA 8130 certification / approval
Features
- High quality product – proven with Trig transponders
- Suitable for most GA types, including high performance aircraft
- Certified to FAA TSO C66c and TSO C74c
- Superior mounting flexibility
- Complete with installation kit
- The antenna can also be used for a DME
