Manufacturer Part Number:
FSG90 - F10185
FSG90H1 - F10302
f.u.n.k.e. FSG 90 VHF/AM Transceiver
General Description
f.u.n.k.e. FSG 90 VHF/AM Transceiver - The airborne transceiver FSG90 is in world–wide operation for decades with an excellent reputation for high equipment reliability, long working life–cycle and very robust equipment design. The FSG90 is a compact airborne radio for the standard 2¼″ cutting. The channel spacing can be switched between the combined 8.33/25 kHz and 25 kHz only separation. The device is available in different versions with higher transmit power (10W) and with extended frequency range up to 149.975 MHz. In its base configuration the FSG90 can be used for mobile applications (e.g. onboard vehicles) as well as approved ground station.
funke Avionics FSG90 VFH/AM Transceiver is a special order item. Please allow approximately four weeks delivery time.
f.u.n.k.e. FSG 90 price varies depending on selection above.
- Dual Mode VHF/AM airband transceiver for 25 kHz and 8,33 kHz channel spacing
- Special voice processor for best voice quality also in the 8,33 kHz spacing
- Memory for 99 channels
- 6 Watt RF output power
- H1 Version (high power) with 10 Watt RF output power
- compatible with CLIMAX (multi–carrier) operation
- Approval for ground based operation

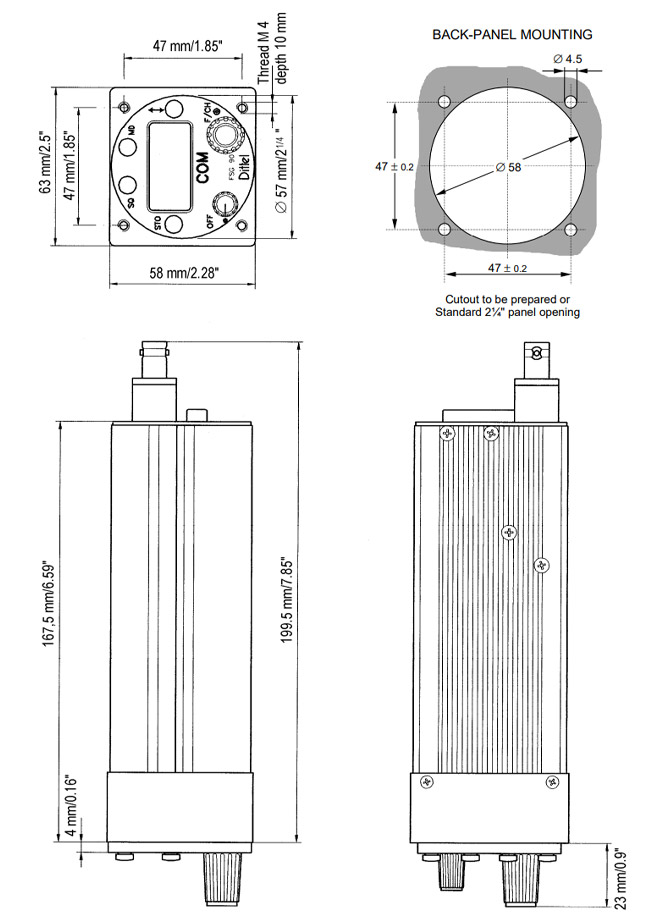

| Dimensions | 63 x 58 x 223 mm |
| Weight | ca. 800 g (H1 Version 820g) |
| Power Supply Voltage | nom. 13.8 V DC (11.0 – 16.1 V DC) |
| Transmitter Power | 6 W (H1 Version: 10 W) |
| Current | < 1.0 A/< 3,0 A (H1 Version: < 1 A / < 4,5 A) |
| Frequency Stability | < 1,5 ppm (–20°C – +55°C) |
| Standards | JTSO–2C37d, JTSO 2C38d ED–23B Transmitter Class 4 & 6 ED–23B Receiver Class C, E |
| Certification | EASA.21O.1305 Rev. A BAF D–0036/2014 BAF D–0037/2014 |
