LXNAV NANO3 IGC Flight Recorder

LXNAV Nano3

General Description

LXNAV NANO3 is the smallest IGC flight recorder with a QVGA screen. Fly without any cables and chargers! A 1800mAh battery serves up to 36h with advanced power management. The Nano3 has 4 push buttons for easy editing and a rocker button for setting volume/zoom and MacCready.

The built-in battery allows up to 25 hours of stand-alone operation. The battery can be charged when the flight recorder is connected to a computer, NanoPower or wall charger. Bluetooth is used for easy data exchange with a PDA.

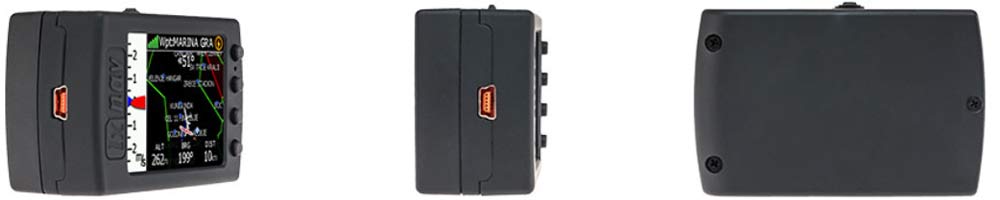

The housing is made of robust ABS plastic. On the left side of the unit, there is a rocker button and five status LEDs which display the operational status. A 4 GB solid state disk is used for flight data storage. Flights are stored directly in IGC format and are downloadable through a USB connection which is compatible with all operating systems (MS Win, Linux and Mac OS).

At the back of the unit, there is a mini USB connector which is used for charging and data transfer. The internal solid-state disk is preloaded with the NanoConfig program. This program is used for uploading a flight declaration and/or changing the settings of the NANO3. Flight declarations can also be uploaded using a serial interface cable or Bluetooth connection.

W&W typically stocks LXNAV Nano3.

Features

• High–level IGC specification
• 2048–bit digital signature
• Advanced engine noise level recording (also for JET engines)
• Automatic power down after landing (can be set by the user)
• Start logging at power on (for paragliders or pedestrians)
• Up to 35 hours with advanced power management
• Up to 16 hours of operation with screen
• Unlimited storage for flights (+28000 hours at 1 sec interval)
• Flights stored in IGC file format are downloadable through USB, Bluetooth or Wi–Fi
• NanoConfig program for creating declaration and system settings (for PC and Android)
• Simple signaling LED’s for logger state, battery and GPS signal
• 2″ sunlight readable
• 340–pixel–by–240–pixel resolution
• 262144 Colors
• Integrated 1800 mAh Li–Ion battery
• Up to 36 hours of operation
• Battery charger via USB port
• 56–channel GPS receiver
• High resolution variometer same technology as on V9/S80 vario
• High resolution pressure altitude sensor measures up to 16000m (~52500ft)
• Inertial platform 3 axis accelerometer and 3 axis gyroscope
• Advanced engine noise level sensor (also for JET engines)
• Plug & Play USB interface (mass storage device)
• USB compatible with all operating systems (MS Win, Linux, Mac OS)
• Serial RS232 interface with NMEA output
• Bluetooth module (Android and iOS)
• Integrated Bluetooth LE4 device (SPP)
• Built–in speaker with adjustable volume
• 4 GBytes of solid state memory
• Robust ABS plastic housing
