LXNAV LX8040 Second Seat Repeater

SKU
5790, 5791
In stock
$1,860.00
-
+
Overview

LXNAV LX8040D Second Seat Repeater

LXNAV LX8040 Second Seat Repeater

With I8 Indicator

General Description

LXNAV LX8040D Second Seat Device is installed in the rear seat of the glider is powered and receives all necessary data from the main unit. The communication between both units is exclusively via the RS485 bus system.

The rear seat device looks almost identical to the main display unit. However, inside the device, there is no GPS or FLARM module. The rear seat device must be connected to the main display unit only via the RS485 bus system. The basic idea of a two-seat configuration is that both devices work independently from each other with the possibility to exchange various data on user request or automatically.

If you are installing a remote stick into a double seat, please note the rear seat stick is marked as "DS". A "DS" remote stick is programmed to control the repeater unit, which is installed on 2nd seat. Rear Seat Remote Sticks are a special order item.

LXNAV LX8040 Second Seat Repeater and Rear Seat Remote Stick are special order items. Please allow approximately 3 weeks LXNAV production time.

Indicators

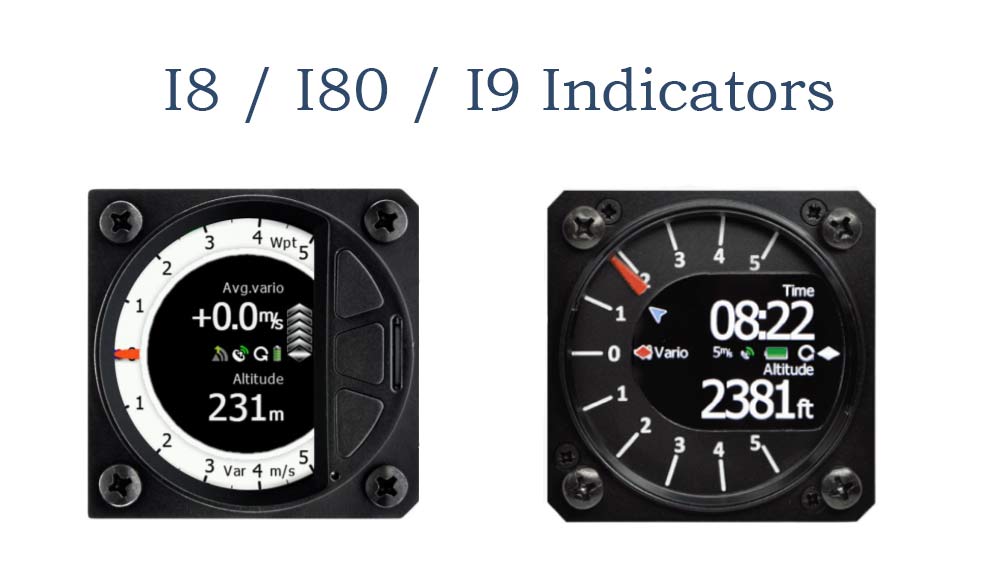

The Indicator I8/I80 is without a mechanical needle. The I80 features a 3.5″ color screen with 320x240 pixels resolution; the I8 features a 2.5″ color screen with 320x240 pixels resolution. User selectable data are displayed on the screen and the needle is drawn. Each indicator is identified by a serial number, which is also displayed on the hardware menu. Therefore, literally an unlimited number of indicators can be connected to the RS485 bus and each of them can be setup separately, however only one vario unit.

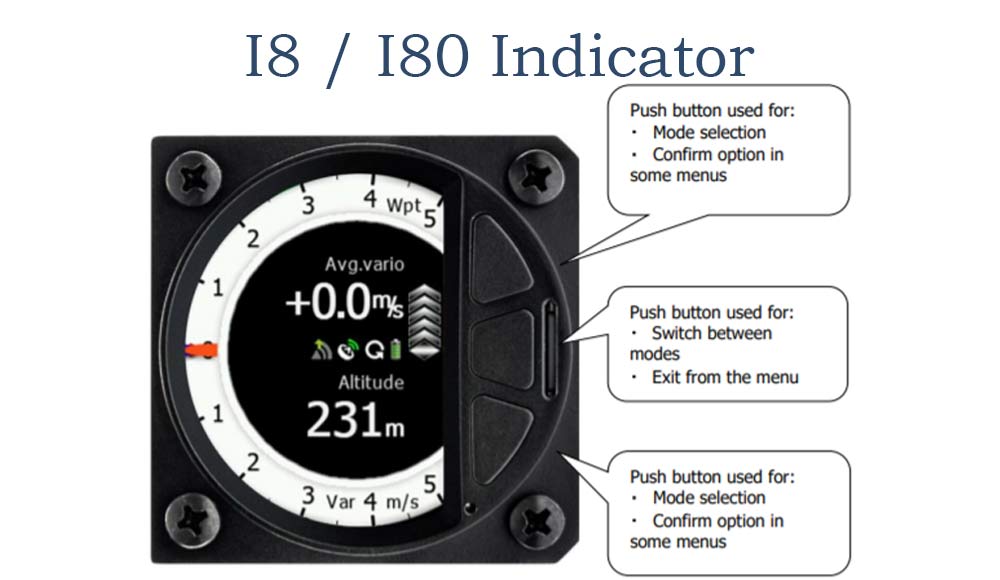

The Indicator basic screen is split into two parts: a white ring with a needle and the vario scale. In addition to the needle, a blue MacCready triangle, a green thermal average T and a red diamond for 20 seconds average are shown. In the center four user–customizable numbers are displayed. When the middle button on indicator is pressed the display will toggle between numeric display, AHRS mode, FLARM radar display, Thermal assistant mode and after a long press on the middle button you can enter the SETUP menu.

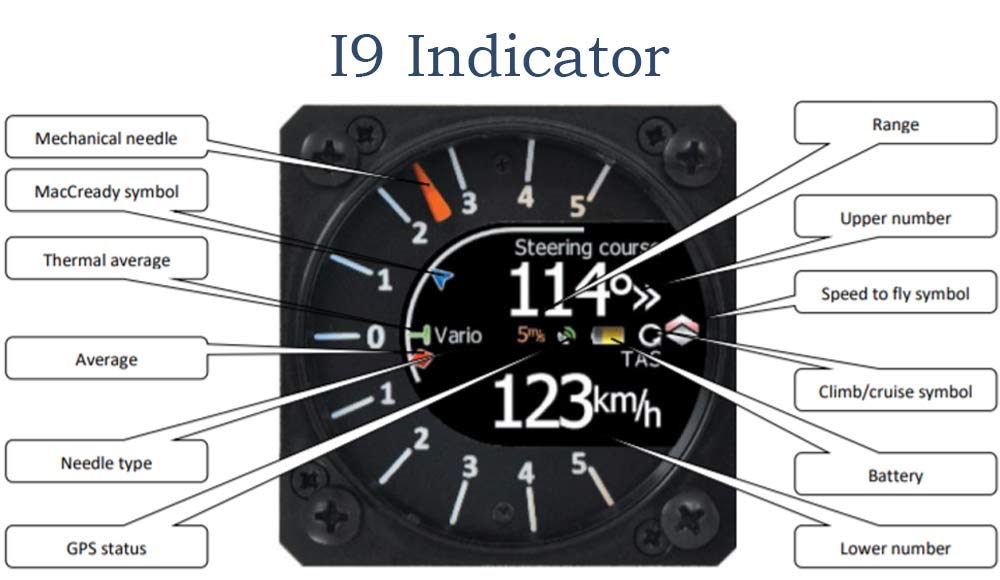

The I9 indicator has a mechanical needle and a color screen with 320x240 pixels resolution on which user selectable data are displayed.

Each I9 indicator is identified by a serial number, which is also displayed on the hardware menu. Therefore, literally unlimited number of vario indicators can be connected to RS485 bus and each of them can be setup separately.

The Mechanical needle displays the vario, netto, relative or speed to fly value. It can be setup separately for climb mode or cruising mode. The printed scale can be chosen in range from –5 to 5 or from –10 to 10. Within software the range can be set to 2.5, 5, 10m/s or 5, 10, 20 kts or 500, 1000, 2000 fpm.

The Upper number and Lower number can be configured as average vario, time, flight time, task remaining time, netto value, outside temperature, thermal average, indicated airspeed, true airspeed, current altitude, distance to goal, arrival altitude, last 60 minutes speed, altitude in feet, flight levels, voltage or average netto. It can be setup separately for climb mode or cruising mode.

Speed to fly bar symbol is indicating which speed you should fly according to the current MacCready setting, sink rate and speed. One arrow means 10 units of speed faster or slower. Up red arrows mean fly slower and down blue arrows mean fly faster.

Red diamond symbol can show average vertical speed, netto or current g–load.

Blue arrow symbol shows the current MacCready value.

Green T symbol represents the last thermal average value –>Thermal White bar displays the arc between the minimum and maximum vertical speed value in last 20 seconds in white color or minimum and maximum g–load in red color, depending on settings.

FLARM warnings can also be shown on the indicator if this box is ticked. By pressing DEMO, you can see how the warning is displayed.

Press RESET–G button to reset the g–meter.

LXNAV LX8040D Second Seat Repeater price varies depending on selections above.

Resource Folder


Approximate Current Consumption
at 12V DC
370mA (at max. brightness)
Min Voltage 10V
Nominal Voltage 12V
Max Voltage 16V - 26V Gen4 and Higher
Dimensions 82 x 82 x 77 mm
Weight 440 g
Storage Temp -40°C to +80°C
Operating Temp -30°C to +60°C
Recommended Humidity 0% to 80%
Circuit Breaker 3 AMP
  • LX8040D
  • Main power cable
  • RS485 cable – 4 meters
  • RS485 splitting unit
  • Vario indicator I8 (Optional I80 or I9)
  • Hex key “Inbus”.
