General Description

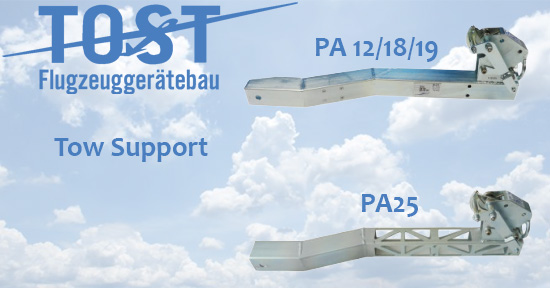

TOST Tow Support - For banner towing or aero tow without CRG, you need to have a release support at the rear of your aircraft to mount the tow release. We manufacture this release support for various aircraft types, see "Tech Data" table.
The Tost tow release E 85 is mounted on this support. This release has an airworthiness approval and can be mounted on any aircraft type. The release support has no certification of its own. It is certified as a component of the EASA-certified Tow Cable Retractor Winch.
The scope of delivery of a Tow Support includes a Bowden Cable of 10 m length for actuation.
TOST Tow Support price varies depending on selection. Use above dropdown box for selections and final price.
|
P/N SKU |
Aircraft Type | Weight g |
|
303030 5159 |
PA 12/18/19 Husky A1/A1-A Includes Spring Pad |
2100 |
|
018525 5120 |
PA 25 Includes Spring Pad |
1050 |
|
018510 5160
|
Husky A-1B Includes Spring Pad |
2100 |
|
018540 5169 |
Maule With New Rubber Acturaing Lever |
2400 |
|
303035 5098 (A&B) |
Citabria With Spring Pad 1.5" or 1.75" |
2100 |
|
018620 5132 |
Zenair 650 and Other Ultralight Aircraft |
1200 |
|
303037 5131 |
Zenair 640 | 2300 |
PA25 Docs
PA25 Complete DocsPA12, 18, 19, Husky A1 Docs
Wings & Wheels typically stocks the items highlighted in yellow in the "Tech Data" table. All other Tow Supports please allow approximately 4 weeks for delivery.
Always use TOST Tires and Tubes when available.
See "Tech Data" tab for Description, Application and Technical Data.
See "Docs" tab for "TOST Tire, Tube & Wheel Selection Guide."
