BatteryMINDer® Model 2012: 12V 2 AMP Charger–Maintainer–Desulfator

General Description

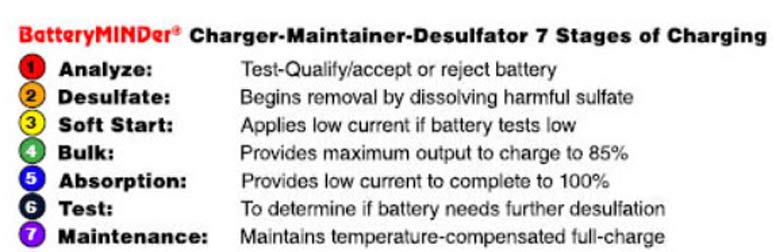

BatteryMINDer® 2012 is a SmarTECHnology™ microprocessor controlled charger/maintainer/desulfator. It is designed with 7–stages and is fully automatic. Plug ‘n Run feature means “no buttons to push.” Features easily understood diagnostic LED indicators that display the battery's condition and actual state–of–charge profile. This charger actively monitors your battery's voltage, amperage acceptance and temperature at all times. Working through a series of charging and diagnostics stages, the internal program adjusts its output several times a second based on sensor reading to quickly and correctly charge your battery. When used as a maintainer, the BatteryMINDer® is guaranteed to maximize your battery's life and storage capacity. The temperature compensated long–term maintenance stage will add years of service. Patented full–time high frequency pulse desulfation (NOT high voltage) prevents battery sulfation on new batteries or eliminates in older batteries, the #1 cause of early battery failure. Unit can maintain up to six 12 Volt batteries at one time when connected in parallel by using SmarTechnology™ Y–Connectors 210AY or customer supplied 18–Gauge insulated wire.

Features and Benefits

• Installed ambient temperature sensor for 0°F–130°F operating range ensures the battery will never be overcharged or undercharged regardless of temperature extremes. Optional “at the battery” sensor is also available for greater accuracy when battery and charger are not in same ambient temperature environment.
• Diagnostic LED indicators for power, polarity reversal, battery weak, load, bad cell, testing, desulfating, temperature compensation, charging stage and charge level.
• Maximizes battery life and capacity, reconditions weak batteries.
• Automatic high frequency (not high voltage) pulse desulfation (U.S. patented.)
• Plug ‘n Run operation–no buttons to push.
• FCC certified.
• Microprocessor controlled ensures accurate–precise charging and maintenance during entire lifetime of unit.
• Diagnoses battery’s condition – can predict failing batteries before they die.
• Maintains up to 6 (12V) batteries at a time. Requires use of Y–Connectors 210AY (sold separately) or customer supplied 18–Gauge insulated wire2.
• Extremely efficient, low operating costs.
• Automatic disconnect and resume if AC power is interrupted.
• Short circuit, spark, polarity and thermal runaway protection.
• Built–in Battery Condition Indicator.
• Worldwide 100–240 VAC 50/60 Hz input.
• Never connect two or more batteries together before fully charging each and checking their condition. Failure to fully charge each battery and check their condition can result in a serious safety hazard.
• For AGM 12 volt types such as Odyssey, see Model 2012–AGM.

What's in the Box

• Model 2012 Charger–Maintainer–Desulfator
• Ambient Temperature Sensor (installed)
• 2′ Battery Clip Cord Set with Quick Connector
• 2′ Fused Ring Terminal Cord Set with Quick Connector
• 6′ AC cord, 6′ DC cord with quick connector (SAE)

Technical Data


Voltage 12V
Charging Current 2 AMP
Power Source 90–240 VAC, 47–63 Hz
Temperature Compensation Yes: –4°F (–20°C) to 122°F (50°C)
Overcharge Protection Yes
Polarity Reversal Protection Yes
International Standard IP65* Dust tight: No ingress of dust; complete protection against contact (dust tight). Protection from water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.
Multiple Batteries (#) 6
Product Dimensions 5.69″ L x 4.06″ W x 2.13″ H
Warranty 5 Year Manufacturer Warranty

* The IP rating of an enclosure, or Ingress Protection Rating specifies how resistant the device is to foreign objects and moisture.

About BatteryMINDer®

Founded in 1993, it is a privately held company headquartered in Englewood, New Jersey. They specialize in battery management products designed to improve and extend the life of any/all type lead–acid based batteries through the use of our proprietary design techniques and U.S. patented desulphation circuitry.

They are the leading manufacturer of pulse type battery charger–maintainer–conditioners in the U.S. They are a 100% owned American company founded by personnel, each with over forty years of battery charging design, development and manufacturing experience.

Regardless of how or where the battery is used, be it in airplanes, autos, RVs, farm equipment, motorcycles, boats, personal watercraft, snowmobiles, emergency generators, etc., significant improvement in both performance (cranking amps – running time) and longevity can be expected with the proper use of one or more of our products.

Note: ALL our BatteryMINDers brand products are built to the highest quality world standards, known as ISO 9002. Their historical failure rate is less than 1/2 of 1% = less than 1 unit out of every 200 units shipped.
