TOST Parking Valve Dual Circuit
050090 DOT4
050091 Mil-H
TOST Parking Valve Dual Circuit
General Description

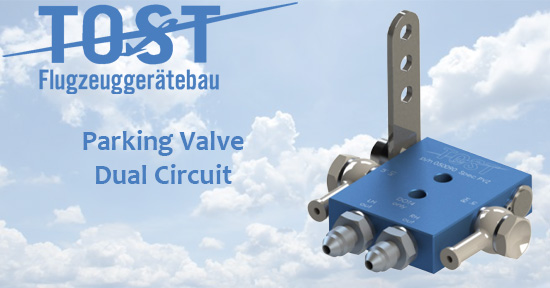

TOST Parking Valve Dual Circuit - If a differential brake is installed, we recommend our dual circuit parking valve, PVZ. The mounting is completed with two bores, the actuation is carried out with a lever, turnable mounted on the control shaft. The hydraulic connection can be carried out individually with different hydraulic fittings.
Use above selection for TOST Parking Valve Dual Circuit.
|
P/N SKU |
Desc |
Hyd Fluid |
Max Operating Press Bar |
Conn Thread |
Weight g |
Remarks |
|
050090 5284 |
PVZ |
DOT4 |
100 | M10X1 | 125 | Actuating Lever |
|
050091 5285 |
PVZ | Mil-H | 100 | M10X1 | 125 | Actuating Lever |
TOST Wheel, Tire, and Tube Selection GuideEspecially when operating powered aircraft, a permanent brake is essential for parking and to perform the run-up. With the help of so-called parking valves, it is possible to hold a once produced hydraulic pressure in the brake system, without actuating permanently the normal master cylinder. Suitable for our hydraulic brake components we offer parking valves for single circuit or double circuit use.
TOST Parking Valve is a special order item. Please see "Shipping Options" above.
Always use TOST Tires and Tubes when available.
See "Tech Data" tab for Description and Technical Data.
Select the right Tire, Tube & Wheel for your sailplane by referencing our Tire, Tube & Wheel Selection Guide.
