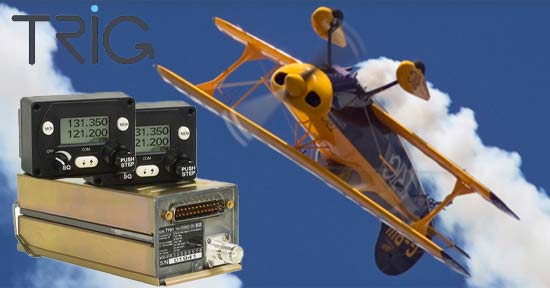

Trig TY91 Dual Controller VHF Radio
Manufacturer Part Number: 01451-00
Trig TY91 Dual VHF Compact Radio Transceiver
General Description
Trig TY91 Dual VFH Radio - is the ideal retro–fit that can be installed out with the main avionics stack. Trig’s compact radio is the perfect VHF comm, it is easy to use, faster to tune and takes up minimal space and weight. With features like Dual Watch, the unique ‘Push Step’ feature provide the fastest in class frequency selection and a built–in intercom Trig’s compact radio is ideal for most GA users requiring a certified aviation radio.
With a crisp clear display and simple user interface the Trig radio benefits from some great features; ‘Dual Watch’ feature allows monitoring of two frequencies at the same time. There are 9 pre–set channel memories which are easily selectable.
Trig’s compact radio is EASA ETSO and FAA TSO approved so it can be used worldwide. Our ‘Push Step’ feature enables the fastest tuning in its class – three times faster than in an 8.33 environment! For customers who do not require 8.33 channel spacing this feature can be disabled, allowing speedy selection between 50 kHz and 25 kHz spacing. This enables rapid change of frequency whilst providing fine tuning in 25 kHz steps if required.
Trig radios also feature a built-in high-quality two-place intercom with an aux–input, saving further cost and weight.
Which Model is Right for Me?
TY91
Light sport, ultra light, glider and balloon pilots will fit the Trig TY91 radio, this lower powered 6 watt model is ideal for the majority of GA users.
TY92
The Trig TY92 has a higher nominal power output of 16 watts, suitable for longer range transmission and for aircraft that have a 28 volt power supply. Easily installed outwith the main avionics stack the TY92 makes a perfect back up radio in larger GA aircraft.
| TY91 Radio | TY92 Radio | |
| Type | Receiver – Class C, Class E. Transmitter – Class 4, Class 6 |
Receiver – Class C, Class E. Transmitter – Class 3, Class 5 |
| Certification | ETSO-2C169a, ETSO-2C128, TSO-C169a, TSO-C128a |
| Compliance | ED-23C, ED-67, DO-186B, DO-178B Level B, DO-160F, DO-254 Level C |
| Supply voltage (DC) | 11 – 33 V | 22 – 33 V |
| Typical current consumption (at 14v) | (at 14V) receive: 200 mA transmit: 2A | (at 28V) receive: 130 mA transmit: 2.5A |
| Nominal Transmitter Power | 6 Watt | 6 Watt |
| Operating temperature | for the radio unit -40 °C to + 70 °C for the controller -20 °C to +70 °C |
| Cooling requirement | No fan required |
| Weight | 460 grams / 1.01 lbs |
| Dimensions (mm) | controller: H 44 x W 63 x D 35 mm (74 mm depth in panel with D-Type connector fitted). radio unit: H 48 x W 66 x L 160 mm (inc. socket) |
| Dimensions (inches) | controller: H 1.73 x W 2.48 x D 1.37 inches (Depth 3 inches with D-Type connector fitted). radio unit: H 1.88 x W 2.59 x L 6.29 inches (inc. socket) |
| Circuit Breaker | 5 AMP |
- TY91 VHF Radio 1 00882-00-01
- TY91/TY92 Mounting Tray 1 00667-00
- TY91/TY92 Installation Kit
- TY91/TY92 VHF Radio Installation Manual 1 00839-00
- TY91/TY92 Pilots Operating Manual 1 00840-00
- Connector Co-axial TNC 1 00723-00
- Headshell, 25 way 1 00726-00
25 way D-type contact housing (female) 1 00866-00 - Crimp Terminal, Female, 22-24 AWG 25 00730-00
- TC90 Controller X2
- TC90 Mounting Template
- TC90 Installation Kit
- Mounting adapter (circular hole adapter) 2 00678-00
- Headshell, 15 way 1 00867-00
- 15 way D-type contact housing (female) 1 00865-00
- Crimp Terminal, Female, 22-24 AWG 15 00730-00
- Long mounting screws, 4-40 thread 4 00736-00
- Short mounting screws, 4-40 thread 4 00737-00
Required Items
Additional items you will require, but which are not in the TY91/TY92 package, include:
- Antenna and fixing hardware. The TY91/TY92 is compatible with any standard 50 ohm vertically polarised antenna with a VSWR better than 2.5:1.
- Cables. You need to supply and fabricate all required cables.
- Fixings. To secure the VHF radio tray to the airframe you will need at least 3 flat head screws and three self-locking nuts. If the aircraft does not have existing mounting provisions you may need to fabricate additional brackets to support the VHF radio tray.
Are Trig radios easy to use?
The radio interface is simple and intuitive. All controls are positive and give good feedback, and can be used with gloves on. The ‘PUSH STEP’ button is a unique feature and allows the fastest selection between 25 kHz or 8.33 kHz steps.
In areas where 8.33 kHz is not used the push step function can be set to change between 25 kHz and 50 kHz steps, making frequency selection just as rapid.
How does the 'Push Step' feature affect 8.33kHz tuning?
The 8.33/25K push step does not affect the mode of the radio. You cannot turn off the 8.33 capability. The push step is only changing the size of the steps when you are tuning. It's there to make tuning faster – 4 times less turns to reach your desired frequency. For example, if you tune to an 8.33 channel, then click the push step to display the small 25k symbol, then you are still transmitting and receiving on the 8.33 channel you selected... only the size of the tuning steps changes for when you next turn the tuning knob.
Is the controller display visible in all lighting conditions?
The LCD display is clear and crisp in all lighting, full sunlight generates a very clear contrast and in dull or dark lighting the inbuilt lighting ensures the unit remains clear and legible. The controller has a backlight and manual dimming can be selected to increase or decrease brightness.
How does the compact fit or full round installation work?
All units ship with the necessary parts to enable you to choose to install the radio either as a compact mount or 2 ¼ “ full round. The TY91 and TY92 kit includes a template to assist you in cutting an accurate compact mount hole in the panel. If a full round mounting is required then you simply fit the included plastic blanks above and below the body of the TC90 controller.
Can I link my GPS to the radio?
Yes, if your GPS supports the SL40 protocol then 8.33 channels, in addition to 25 kHz and 50 kHz frequency data and airfield identifiers will be displayed in the TC90 Controller display window. TC90 software version 1.5 adds support for 8.33 channel spacing on an SL40 GPS.
Will I need to change my antenna?
Trig's compact radios are designed to operate with your existing operational antenna. One of the advantages of the Trig radio is that the hardware box can be mounted away from the panel and close to the antenna. A shorter antenna cable reduces signal loss and improves performance.
Can I play music through the radio?
Yes - Trig's compact radios have the capability to play music through your headset via an auxiliary input (mono).
What type of headset should I use?
Trig radios are designed to work with a standard aviation headset. Audio performance is good on both noise cancelling and standard headsets. If you wish to use the radio with headsets that have a built in intercom, such as those used in microlights you are advised to contact [email protected] to check compatibility. You may require a third party intercom adaptor.
Can I use the radio without a headset?
Both radios have a built in speaker amplifier, this supports the connection of an auxiliary speaker allowing headset free operation. This is ideal suited to glider pilots, who may prefer to fly without a headset. If using a dynamic microphone with a Trig radio please note an amplified adaptor will be required.
Can I use the radios in open cockpit flying?
The TC90 Controller is designed to be splash proof and can be used in these open and harsh environments.
Can I operate the radio on batteries?
Operation of the radio from a battery is a practical option given the efficiency of the radio. Your Trig radio can be relied upon for many hours when powered by battery, our installation guide, on the Trig web site provides guidance on the best power sources to select and the duration you should expect these to operate for.
Can I use a second control head, connected to the main hardware unit?
Yes – this is called Dual Control and is ideal for tandem gliders and tandem training aircraft.
How can I find out about the wiring required to install the radio?
For information on installing the radio both the operation manual and install manual can both be viewed or downloaded. Please find the manuals in the left hand navigation.
If I am required to comply with the ICNIRP public limits for my aircraft radios, what do I need to do?
The ICNIRP is the International Commission on Non-Ionizing Radiation Protection, and they have proposed limits on the amount of radio frequency energy that the public should be exposed to. These limits cover every transmitting source, from TV stations to 5G mobile phone masts, and includes aircraft radios.
Because the amount of energy that reaches a body is a function of the distance from the transmitter, and because we know the transmit power of our radios, we can work out the safe distance that must be maintained to meet these limits. Fortunately, the average power of our radios is low compared to most broadcast transmitters, and therefore our safe distances are very small. For any Trig transponder, although the instantaneous pulse power is high, the duty cycle and the total transmitter-on time is so short that the average power is well below the 10 W applicability limit for ICNIRP, and therefore your transponder is not affected by ICNIRP.
For our VHF radios, although you probably don’t transmit all the time, it is certainly possible to exceed the 10 W limit. That is even true for our 6 W rated transmitters - because the ICNIRP limit takes account of the antenna gain and directionality, and the field strength can be higher than the nominal power. You therefore need to consider the safe distance for these radios between the transmitting antenna and any member of the public. The actual safe distance will depend on the transmitting antenna configuration, but we have calculated the distances for conventional aircraft antennas.
Allowing for typical antenna cable losses, for our 16 W radios, such as TY97 and TY92, the safe distance is about 1.8 metres or 6 feet. For our 10 W radios, such as TY96 or TY96A, the safe distance is about 1.51 metres, or 5 feet. Finally, for our 6 W radios the distance is about 1.17 metres, or 3 feet 10 inches.
You can see that none of these distances will affect members of the public near to your aircraft in flight, or even whilst operating on the ground. The definition of “general public” also does not include the pilot of the aircraft, or anyone involved in operating the aircraft – they are assumed to be aware of the risks, and to have taken an informed decision to participate.
The “general public” however, does include passengers. You therefore need to consider the orientation of the passenger seats in relation to any transmitting antenna, and the extent to which they are shielded by the cabin structure and by any ground plane provisions. For many metal aircraft the construction means that the occupants are naturally shielded from transmissions, making this less of an issue. For other types, you may need to perform more analysis. Solving that is outside the scope of this FAQ. for information about the ICNIRP see www.icnirp.org
Features
- Low size and weight, with flexibility of installation options.
- Simple operation via positive controls can be easily operated whilst wearing gloves.
- Dual watch function, allowing the monitoring of a standby frequency.
- Includes a two place intercom.
- Includes a built in speaker amplifier, allowing pilots the option of headset free operation.
- 9 programmable memories.
- Crisp display, visible in all lighting conditions.
- Fully certified
Small and Flexible
The Trig TY91 and TY92 take up minimal space and weight. The use of a control head and separate radio hardware unit provides more installation options, especially when space is at a premium.
The control head can be conveniently mounted in a standard 21/4” round hole or even smaller compact mount. Installation is straight forward, and once fitted the depth of the radio control head is less than 11/2” deep. In practice this means that the Trig TY91 and TY92 control head can be installed in an aircraft panel where a larger ‘single box’ radio would not fit. Operation of the radio is simple and frequency selection rapid. The TY91 and TY92 can be set at 25 kHz and 8.33 kHz steps making them suitable for use in Europe.
