TOST Master Cylinder Max & Mini
Manufacturer Part Number: 058220

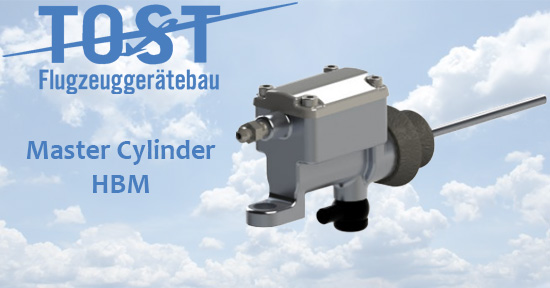

TOST Master Cylinder HBM Max & Mini
General Description
TOST Master Cylinder HBM Max & Mini - Suitable for our smaller brake assembly BZM, we offer the master cylinder HBM. It features compact outer dimensions, a universal actuation, and an easy installation. With the generated braking pressure, one or two brake assemblies BZM can be operated.
|
P/N SKU |
Desc |
Hyd Fluid |
App Suitable Brake Assembly |
Max Operating Press Bar |
Conn Thread |
Weight g |
|
058220 6114 |
HMB | Mil-H | BZM | 60 | M5 | 69 |
TOST Wheel, Tire, and Tube Selection GuideMaster cylinder are the components in a hydraulic brake system, that produce the necessary brake respectively hydraulic pressure to push the brake linings against the brake disk. In addition to our brake assemblies, we manufacture a wide variety of master cylinders, available from stock, which can be used in different combinations. In general, three types of master cylinder can be classified:
- Hydraulic brake lever, which can be mounted directly to the control stick. The actuation is carried out directly by the pilot.e.g.: HBG, HBGD, HBGSH
- Rudder pedal master cylinder, which can be mounted to additional small pedals on the rudder pedals or at a user-defined place in the fuselage. If the installation is not realized at the rudder pedals, the actuation has to be realized with a bow- den cable or push-rods. e.g.: PHBZ, 10-30
- Universal master cylinder for user-defined installation in the fuselage. The actuation has to be realized with a bowden cable or push-rods. e.g.: Form 7
TOST Master Cylinder HBM is a special order item. Please see "Shipping Options" above.
Always use TOST Tires and Tubes when available.
See "Tech Data" tab for Description, Application, and Technical Data.
Select the right Tire, Tube & Wheel for your sailplane by referencing our Tire, Tube & Wheel Selection Guide.
