COBRA Wheel Bearing
COBRA Wheel Bearing
General Description
COBRA Wheel Bearings - differ depending on axle type. Please see "Identifying Your Bearing Type" in COBRA Trailer Resource Folder".
Bearings are sold individually, not as a pair.
6449A:
COBRA Wheel Bearing for 1637 / 1636 G (for axle weight 900kg / 1000kg). Set includes:
• Bearing
• Locking Ring
• Self Locking Nut
• Directions
6449B (Tapered Bearings):
COBRA Wheel Bearing (2035–1000kg/2050–1300kg) – before 1992. Set includes:
• Taper Roller Bearing 704 293
• Taper Roller Bearing 704 294
• Shaft Seal 700 272
6449C:
COBRA Wheel Bearing for 2051 (for axle weight 1500kg). Set includes:
• Bearing
• Locking Ring
• Self Locking Nut
• Directions
COBRA Wheel Bearing price varies depending on selection above.
| 1224800 SKU 6449A |
Ø outside 60 mm - inside Ø 30 mm - width 37 mm wheel nut M24x1,5 self-locking - height 18 mm - outer Ø 49 mm circlip - outer Ø approx. 64 mm Manufacturer AL-KO Set 1224800 1637 |
| 258312 SKU 6449B |
Kit includes 2 x bearings 1 x seal Bearing numbers: LM67048V2 & LM11949 Seal number: 42 62 7 Bearing LM67048V2. Outer diameter =59mm. inner diameter = 31mm. Depth = 17mm. Bearing LM11949. Outer diameter = 45mm. Inner diameter = 19mm. Depth 17mm. |
| 1224803 SKU 6449C |
outer Ø 72 mm - inner Ø 39 mm - width 37 mm wheel nut M24x1,5 self-locking - height 18 mm - outer Ø 49 mm circlip - Ø outside 77 mm Manufacturer AL-KO Set 1224803 |
| 1224801 SKU 6449D |
outer Ø 64 mm - inner Ø 34 mm - width 37 mm wheel nut M24x1,5 self-locking - height 18 mm - outer Ø 49 mm circlip - Ø outside appr. 68 mm Manufacturer AL-KO Set 1224801 |

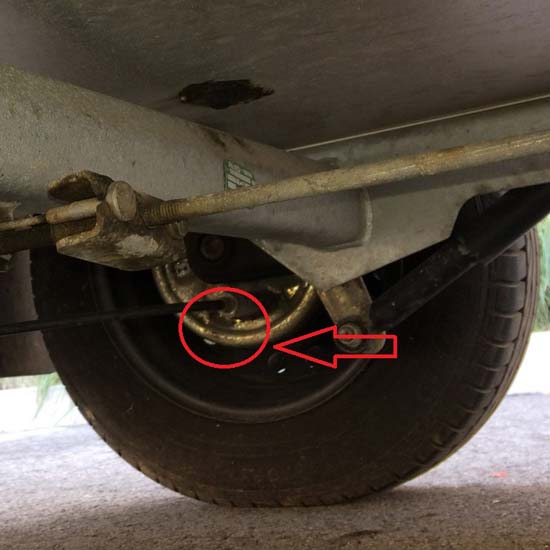

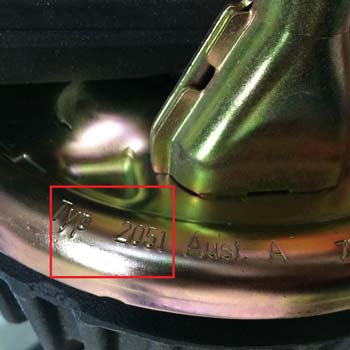

Please verify before ordering. The Drum type is stamped on the brake backing plate (aft side of the brake unit).

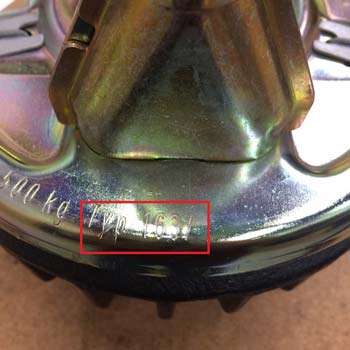

Drum 1637 / 1636 G uses Bearings SKU 1669A.
Drum 2050 / 2051 Depends on Axle weight See main page.
6449D:
COBRA Wheel Bearing 2051 (for axle weight 1000kg / 1300kg). Set includes:
• Bearing
• Locking Ring
• Set Locking Nut
• Directions
