Schempp-Hirth Tail Skid for Cirrus and Ventus
Available With or Without WheelÂ
Schempp-Hirth Tail Skid
General Description

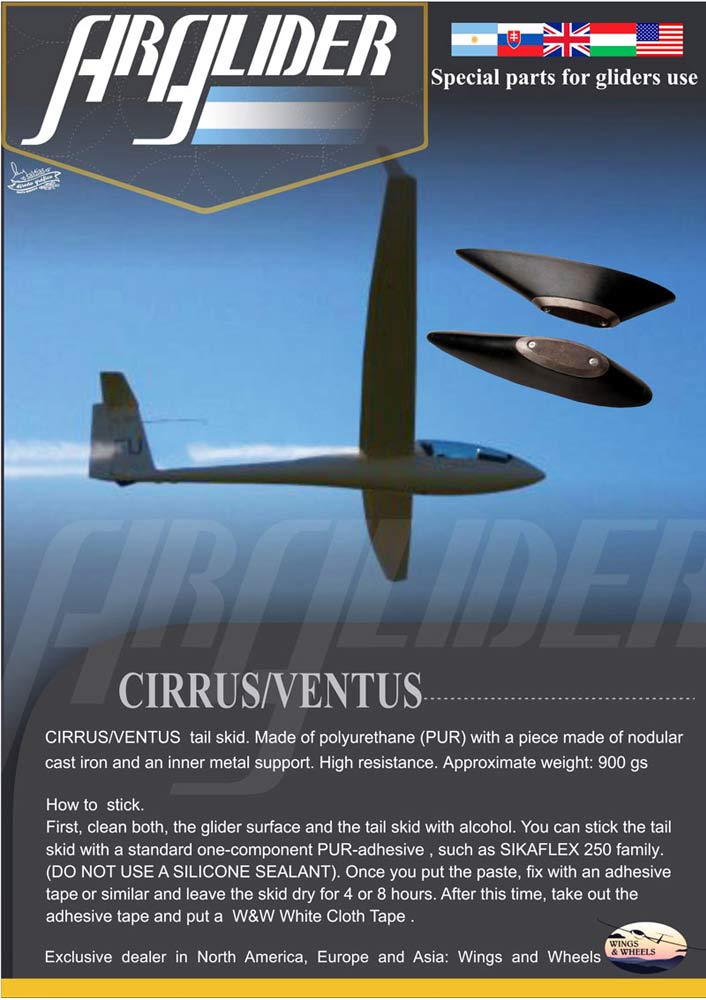

Schempp-HIrth Tail Skid - AR Glider production tail skid for Schempp–Hirth (SH) sailplanes. This tail skid fits the Phoebus, Astir Std II, Janus, Cirrus, Ventus, Nimbus II and other gliders.
These tail skids are constructed with solid polyurethane and cast iron with an inner metal support.
Dimensions for the SH tail skid with metal plate is 80 mm wide x 345 mm long and 68mm high. Dimensions for SH tail skid with roller ball wheel is 80 mm wide x 345 mm long x 78 mm high. The SH tail skid has a flat mounting surface.
Wings & Wheels recommends two options:
Scope of delivery: 1 Tail Skid with or without wheel as selected.
Schempp-Hirth Tail Skid price varies depending on selection avbove.
| SH TAIL SKID WITH METAL PLATE |
SH TAIL SKID WITH ROLLER BALL |
|
| Wide | 80 mm | 80 mm |
| Long | 345 mm | 345 mm |
| Height | 69 mm | 78 mm |
Comparison
| Width | Length | Height/Plate | Height/Wheel | Mounting | Weight | |
| SH | 80 mm | 345 mm | 68 mm | 78 mm | Flat | 900 g |
| LS | 92 mm | 280 mm | 70 mm | 110 mm | Curved | 900 g |
| ASW | 117 mm | 335 mm | 90 mm | 105 mm | Flat | 1025 g |
W&W typically stocks Schempp-Hirth Tail Skid with or without wheel.
